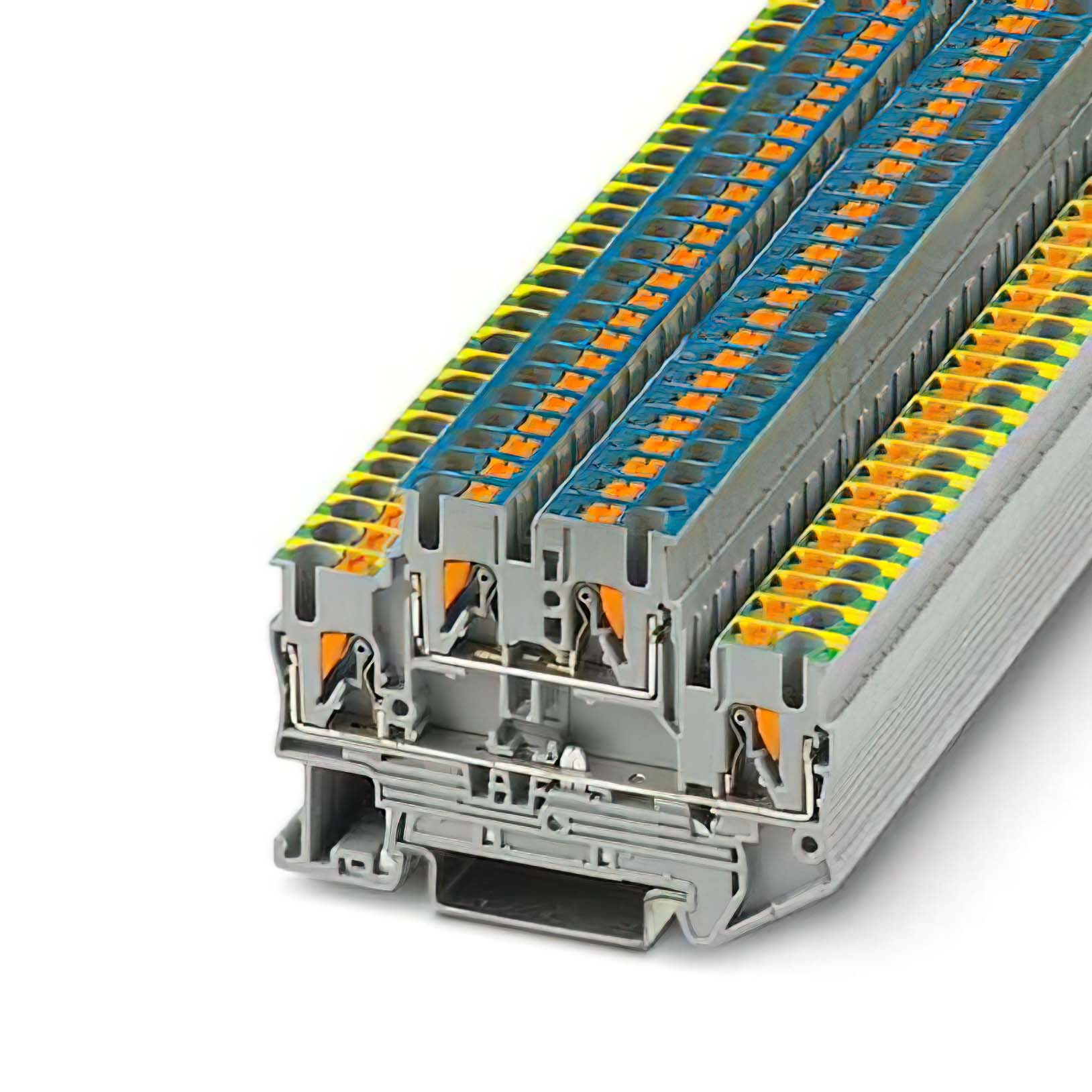

Phoenix Contact 3210981

3210981 Phoenix Contact
3210981
Phoenix Contact

Product Information

Number of Levels:
Double
Voltage Rating:
500 V
Series:
PTTB 2.5-PE/N
Colour:
Grey
American Wire Gauge:
26 → 12AWG
Termination Method:
Push In
Cable CSA:
2.5mm²
HTSUS:
8536.69.8000
RoHS Status:
RoHS Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Type:
Feed Through
Number of Positions:
4
Wire Gauge or Range - mm²:
0.14-4mm²
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Stripping Length:
10mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
24 A
Number of Levels:
2; 1 Grounded
Wire Gauge or Range - AWG:
12-24 AWG
Voltage - UL:
300V
standardLeadTime:
5 Weeks
Terminal - Width:
5.2mm
Disconnect Type:
-
Voltage - IEC:
500V
Features:
-
Color:
Gray
Series:
CLIPLINE PTTB
Packaging:
Box
Fuse Type:
-
Current - UL:
20 A
ECCN:
EAR99
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 3210981. The product carries double levels. Moreover, the product has a nominal 500 v voltage rating. The product pttb 2.5-pe/n, is a highly preferred choice for users. It has a decent grey colour. Features 26 → 12awg - American Wire Gauge. It allows push in termination method. The cross section area of the cable includes 2.5mm². It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs compliant. Moreover, it has push in, spring terminal style. It is designed from highly reliable polyamide (pa), nylon insulating material. It comes in feed through configuration. The product carries possible position value of 4. A 0.14-4mm² of wire gauge. It carries ul94 v-0 of material flammability rating. The phoenix contact's product offers user-desired applications. It has a stripping length of 10mm. Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 24 a. The product carries 2; 1 grounded levels. While 12-24 awg is its range or wire gauge. While 300v is the typical voltage of the product. It has a long 5 weeks standard lead time. The built-in terminal is 5.2mm wide. The nominal voltage of the product is 500v. It has a classic gray colour. The product clipline pttb, is a highly preferred choice for users. In addition, box is the available packaging type of the product. The typical current includes 20 a. The product is designated with the ear99 code number.

pdf icon
Datasheet - 3210981(Technical Reference)
pdf icon
PIT to PT 27/Feb/2012(PCN Design/Specification)
pdf icon
Multiple Devices Aesthetic 6/16/2015(PCN Design/Specification)
pdf icon
3210981(Datasheets)
