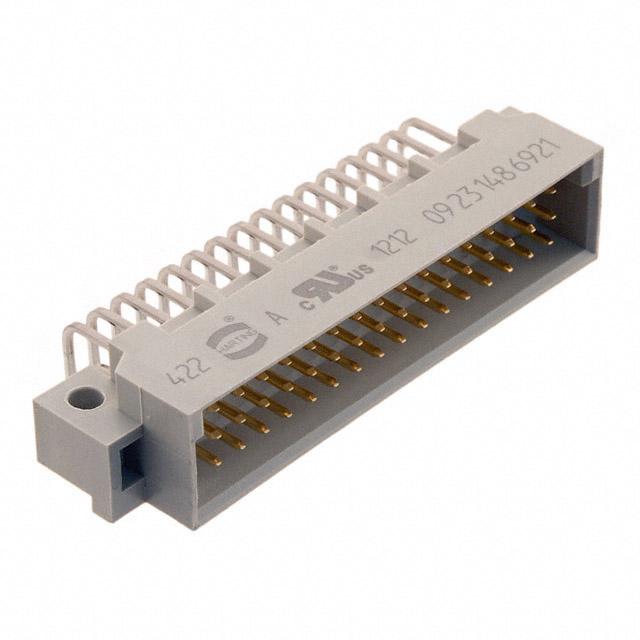

HARTING 09231486921

09231486921 HARTING
09231486921
09231486921
ET12138614
HARTING

Product Information

Number of Rows:
3
Class Rating:
C2
Current Rating:
2A
Mounting Type:
Through Hole
Gender:
Male
Body Orientation:
Right Angle
Termination Method:
Solder
Row Loading:
a/b/c
Contact Plating:
Gold over Nickel
Pitch:
2.54mm
Number of Contacts:
48
Type:
2C
Style:
2C
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Thermoplastic, Glass Filled
Operating Temperature:
-
Contact Finish Thickness:
Flash
Number of Positions:
48
REACH Status:
REACH Unaffected
edacadModel:
09231486921 Models
Number of Rows:
3
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3180439
Package:
Bulk
Connector Type:
Header, Male Pins
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Level, Class:
2
Termination:
Solder
standardLeadTime:
28 Weeks
Current Rating (Amps):
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
DIN 41612
Pitch:
0.100" (2.54mm)
Number of Positions Loaded:
All
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 09231486921. It comes in 3 of rows. Furthermore, the product has c2 class rating . The product has a current rating of 2a. The product is available in through hole configuration. In addition, male is the available "Gender" of the product. It has right angle body orientation. It allows solder termination method. It contains a/b/c row loading . The high-quality gold over nickel is used as contact plating material. Moreover, the product is 2.54mm. The product contains 48 contacts. It comes in 2c configuration. Additionally, the product is designed with 2c Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It is designed from highly reliable thermoplastic, glass filled insulating material. It has flash of contact finishing thickness. The product carries possible position value of 48. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . header, male pins Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product consists of 2 levels, classes. The product features solder termination style. It has a long 28 weeks standard lead time. The product is available in through hole, right angle configuration. The product din 41612, is a highly preferred choice for users. Moreover, the product is 0.100" (2.54mm). However, all is the Number of Positions Loaded. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Dimensional Drawing(Technical Reference)
pdf icon
Plating chg 25/OCT/2021(PCN Design/Specification)
pdf icon
09031326921(Datasheets)
pdf icon
0923148x921 Drawing(Product Drawings)
pdf icon
09231486921(Reference Design Library)
