Product Information

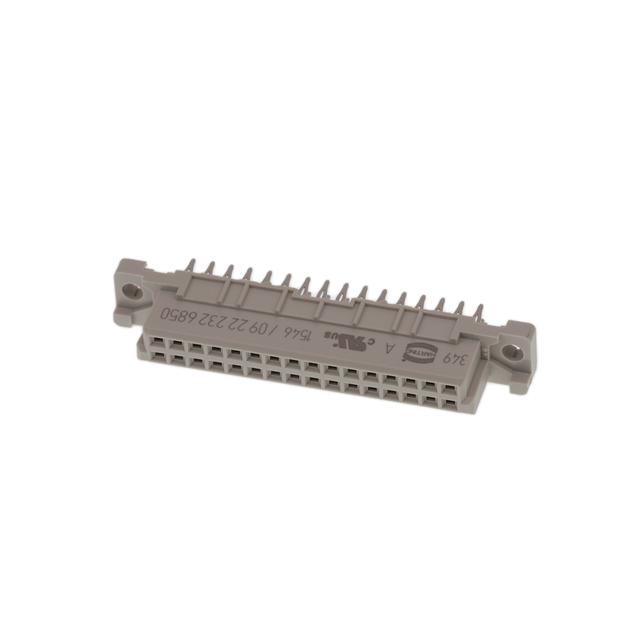

The 09222326850 offered by HARTING  is a solid, dependable, high-geared connector designed to facilitate streamlined, secure electrical connections in various demanding environments. The 09222326850 represents a versatile solution for ensuring superior connectivity and performance in industrial-grade applications.

Number of Rows:
2
Class Rating:
C2
Current Rating:
2A
Minimum Operating Temperature:
-40°C
Mounting Type:
Through Hole
Maximum Contact Resistance:
15mΩ
Gender:
Female
Body Orientation:
Straight
Termination Method:
Press-In
Housing Material:
Thermoplastic
Row Loading:
a/b
Contact Plating:
Gold over Nickel
Pitch:
2.54mm
Number of Contacts:
32
Type:
2B
Maximum Operating Temperature:
+105°C
Contact Material:
Copper Alloy
Style:
2B
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Material - Insulation:
Thermoplastic, Glass Filled
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness:
-
Number of Positions:
32
title:
09222326850
REACH Status:
REACH Unaffected
edacadModel:
09222326850 Models
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3180432
Manufacturer:
HARTING
Connector Type:
Receptacle, Female Sockets
Contact Finish:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Level, Class:
2
Termination:
Press-Fit
standardLeadTime:
17 Weeks
Current Rating (Amps):
-
Features:
-
Mounting Type:
Through Hole
Series:
DIN 41612
Packaging:
Bulk
Pitch:
0.100" (2.54mm)
Number of Positions Loaded:
All
ECCN:
EAR99
RoHs Compliant
Checking for live stock

The 09222326850 from HARTING Technology Group is a robust and reliable industrial connector used in numerous applications across various industries. Its modular design and a high degree of protection make it highly adaptable to different applications, and its high contact density allows it to handle a large number of signals in a compact space. Overall, it is an excellent choice for applications that require a reliable and robust connector that can withstand harsh industrial environments.

Crucial Features of HARTING 09222326850 Include:

  • The HARTING 09222326850 is a rectangular connector made for use in harsh industrial environments.
  • The connector has a metal housing that provides excellent mechanical protection and is designed to withstand high levels of shock and vibration.
  • It has a high degree of protection against dust and water, making it a go-to choice for outdoor applications.
  • The HARTING 09222326850 has a modular design allowing easy configuration and customization.
  • It is available in various sizes and structures and can be equipped with a range of contact inserts and accessories.
  • The connector has a high contact density, which means it can withstand a large number of signals in a compact space.

Potentail Applications of HARTING 09222326850:

  • The HARTING 09222326850 is used in various industries, including automotive, aerospace, and industrial automation. Its robust design and high degree of protection make it perfect for use in harsh industrial environments, such as factories and outdoor installations.
  • In the automotive industry, the HARTING 09222326850 connects sensors, actuators, and other components in the engine and transmission systems. It is also used for connecting various electrical and electronic systems in the vehicle, such as the infotainment system and the lighting system.
  • In the aerospace industry, the HARTING 09222326850 connects avionics systems, such as flight control and navigation systems. It is also used for connecting various electrical and electronic systems in the aircraft, such as the lighting and communication systems.
  • In the industrial automation industry, the HARTING 09222326850 is used for connecting various sensors, actuators, and other components in the manufacturing process. It is also used for connecting multiple electrical and electronic systems in the factory, such as the control and power distribution systems.

Advantages of HARTING 09222326850:

  • The HARTING 09222326850 offers several advantages over other types of connectors.
  • Its robust design and high degree of protection make it suitable for challenging industrial environments.
  • Its modular design enables easy configuration and customization, which makes it highly versatile for different applications.
  • Its high contact density enables it to handle many signals in a compact space, making it an excellent choice for uses where space is limited.
