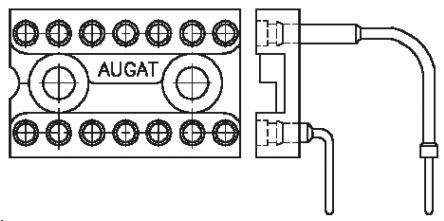

TE Connectivity 2.54mm Pitch Vertical 14 Way, Through Hole Turned pin Closed Frame IC Dip Socket, 3A

1825088-3 TE Connectivity 2.54mm Pitch Vertical 14 Way, Through Hole Turned pin Closed Frame IC Dip Socket, 3A
TE Connectivity

Product Information

Row Width:
7.62mm
Number of Contacts:
14
Current Rating:
3A
Dimensions:
17.78 x 11.43 x 13.2mm
Mounting Type:
Through Hole
Contact Material:
Beryllium Copper
Termination Method:
Solder
Length:
17.78mm
Housing Material:
PET
Width:
11.43mm
Depth:
13.2mm
Contact Plating:
Gold, Tin
Pitch:
2.54mm
Orientation:
Right Angle
Frame Type:
Closed Frame
Maximum Operating Temperature:
+125°C
Minimum Operating Temperature:
-55°C
Pin Type:
Turned
RoHs Compliant
Checking for live stock

This is 2.54mm Pitch Vertical 14 Way Through Hole Turned pin Closed Frame IC Dip Socket 3A manufactured by TE Connectivity. The manufacturer part number is 1825088-3. Its row is 7.62mm in width . The product contains 14 contacts. The product has a current rating of 3a. The given dimensions of the product include 17.78 x 11.43 x 13.2mm. The product is available in through hole configuration. The product is made from sturdy beryllium copper materials. It allows solder termination method. Its accurate length is 17.78mm. The product also features robust pet housing material. Furthermore, the product is 11.43mm wide. The product comes in 13.2mm depth. The high-quality gold, tin is used as contact plating material. Moreover, the product is 2.54mm. The product has a right angle orientation. The frame is designed as [Fram Type] type. It has a maximum operating temperature of +125°c. Whereas, the minimum operating temperature of the product is -55°c. It contains a turned type pin .
