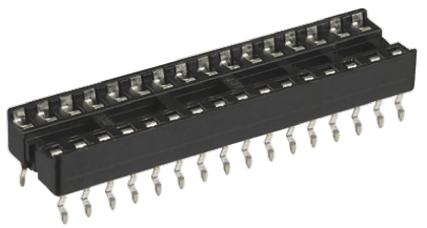

TE Connectivity 2.54mm Pitch Vertical 32 Way, Through Hole Stamped pin Closed Frame IC Dip Socket

2-382189-1 TE Connectivity 2.54mm Pitch Vertical 32 Way, Through Hole Stamped pin Closed Frame IC Dip Socket
TE Connectivity

Product Information

Row Width:
15.24mm
Number of Contacts:
32
Dimensions:
40.51 x 5.33 x 17.63mm
Mounting Type:
Through Hole
Contact Material:
Beryllium Copper
Termination Method:
Solder
Length:
40.51mm
Housing Material:
Thermoplastic
Width:
5.33mm
Depth:
17.63mm
Contact Plating:
Tin
Pitch:
2.54mm
Orientation:
Vertical
Frame Type:
Closed Frame
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-55°C
Pin Type:
Stamped
RoHs Compliant
Checking for live stock

This is 2.54mm Pitch Vertical 32 Way Through Hole Stamped pin Closed Frame IC Dip Socket manufactured by TE Connectivity. The manufacturer part number is 2-382189-1. Its row is 15.24mm in width . The product contains 32 contacts. The given dimensions of the product include 40.51 x 5.33 x 17.63mm. The product is available in through hole configuration. The product is made from sturdy beryllium copper materials. It allows solder termination method. Its accurate length is 40.51mm. The product also features robust thermoplastic housing material. Furthermore, the product is 5.33mm wide. The product comes in 17.63mm depth. The high-quality tin is used as contact plating material. Moreover, the product is 2.54mm. The product has a vertical orientation. The frame is designed as [Fram Type] type. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -55°c. It contains a stamped type pin .

pdf icon
DIP Socket,2.54mm,Thru Hole,32way(Technical Reference)
