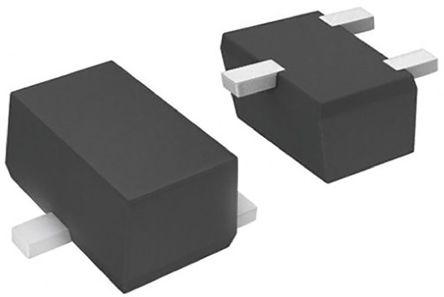

ROHM, DTC123JMT2L NPN Digital Transistor, 100 mA 50 V 2.2 kΩ, Ratio Of 21, 3-Pin SC-105AA

DTC123JMT2L ROHM, NPN Digital Transistor, 100 mA 50 V 2.2 kΩ, Ratio Of 21, 3-Pin SC-105AA
ROHM

Product Information

Base-Emitter Resistor:
47kΩ
Transistor Type:
NPN
Dimensions:
1.3 x 0.9 x 0.45mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
150 mW
Maximum Continuous Collector Current:
100 mA
Maximum Collector Emitter Voltage:
50 V
Minimum DC Current Gain:
80
Height:
0.45mm
Width:
0.9mm
Length:
1.3mm
Package Type:
SC-105AA
Number of Elements per Chip:
1
Typical Resistor Ratio:
21
Configuration:
Single
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Typical Input Resistor:
2.2 kΩ
RoHs Compliant
Checking for live stock

This is NPN Digital Transistor 100 mA 50 V 2.2 kΩ Ratio Of 21 3-Pin SC-105AA manufactured by ROHM. The manufacturer part number is DTC123JMT2L. It has about 47kω base-emitter resistor . The transistor is a npn type. The given dimensions of the product include 1.3 x 0.9 x 0.45mm. The product is available in surface mount configuration. Provides up to 150 mw maximum power dissipation. The product has a maximum 100 ma continuous collector current . Whereas features a 50 v of collector emitter voltage (max). It features up to 80 of minimum DC current gain. In addition, the height is 0.45mm. Furthermore, the product is 0.9mm wide. Its accurate length is 1.3mm. The package is a sort of sc-105aa. It consists of 1 elements per chip. In addition, it has a typical 21 resistor ratio . The product is available in single configuration. It has a maximum operating temperature of +150 °c. It contains 3 pins. Whereas, it has a typical 2.2 kω input resistor .

pdf icon
DTC123J Series, NPN Digital Transistor with Built-in Bias Resistors (50V 100mA)(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
