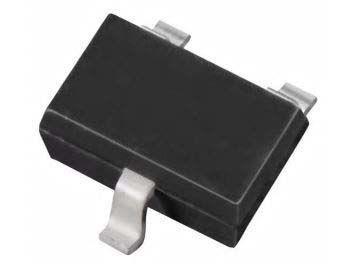

Diodes Inc, ADTC114EUAQ-7 NPN Digital Transistor, 100 mA 50 V Ratio Of 10 kΩ, 3-Pin SOT-323 (SC-70)

ADTC114EUAQ-7 Diodes Inc,  NPN Digital Transistor, 100 mA 50 V Ratio Of 10 kΩ, 3-Pin SOT-323 (SC-70)
ADTC114EUAQ-7
DiodesZetex

Product Information

Automotive Standard:
AEC-Q101
Base-Emitter Resistor:
10kΩ
Transistor Type:
NPN
Dimensions:
2.2 x 1.35 x 1mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
330 mW
Maximum Continuous Collector Current:
100 mA
Maximum Collector Emitter Voltage:
50 V
Minimum DC Current Gain:
30
Height:
1mm
Width:
1.35mm
Length:
2.2mm
Package Type:
SOT-323 (SC-70)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Transistor Configuration:
Single
Configuration:
Single
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Typical Input Resistor:
10 kΩ
RoHs Compliant
Checking for live stock

This is Diodes Inc NPN Digital Transistor 100 mA 50 V Ratio Of 10 kΩ 3-Pin SOT-323 (SC-70) manufactured by DiodesZetex. The manufacturer part number is ADTC114EUAQ-7. The product complies with automotive standard - aec-q101. It has about 10kω base-emitter resistor . The transistor is a npn type. The given dimensions of the product include 2.2 x 1.35 x 1mm. The product is available in surface mount configuration. Provides up to 330 mw maximum power dissipation. The product has a maximum 100 ma continuous collector current . Whereas features a 50 v of collector emitter voltage (max). It features up to 30 of minimum DC current gain. In addition, the height is 1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.2mm. The package is a sort of sot-323 (sc-70). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The product offers single transistor configuration. The product is available in single configuration. It has a maximum operating temperature of +150 °c. It contains 3 pins. Whereas, it has a typical 10 kω input resistor .

pdf icon
ADTC114EUAQ, NPN Pre-Biased Small Signal Surface Mount Transistor(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
