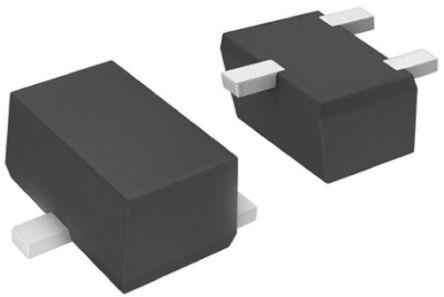

Panasonic, DRC9124X0L NPN Digital Transistor, 100 mA 50 V 22 kΩ, Ratio Of 0.47, 3-Pin SSMini3

DRC9124X0L Panasonic, NPN Digital Transistor, 100 mA 50 V 22 kΩ, Ratio Of 0.47, 3-Pin SSMini3
Panasonic

Product Information

Minimum DC Current Gain:
80
Transistor Type:
NPN
Dimensions:
1.6 x 0.85 x 0.6mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
125 mW
Maximum Continuous Collector Current:
100 mA
Maximum Collector Emitter Voltage:
50 V
Height:
0.6mm
Width:
0.85mm
Length:
1.6mm
Package Type:
SSMini3 F3 B
Number of Elements per Chip:
1
Maximum Collector Emitter Saturation Voltage:
0.25 V
Typical Resistor Ratio:
0.47
Transistor Configuration:
Single
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Typical Input Resistor:
22 kΩ
RoHs Compliant
Checking for live stock

This is NPN Digital Transistor 100 mA 50 V 22 kΩ Ratio Of 0.47 3-Pin SSMini3 manufactured by Panasonic. The manufacturer part number is DRC9124X0L. It features up to 80 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 1.6 x 0.85 x 0.6mm. The product is available in surface mount configuration. Provides up to 125 mw maximum power dissipation. The product has a maximum 100 ma continuous collector current . Whereas features a 50 v of collector emitter voltage (max). In addition, the height is 0.6mm. Furthermore, the product is 0.85mm wide. Its accurate length is 1.6mm. The package is a sort of ssmini3 f3 b. It consists of 1 elements per chip. The product has a maximum 0.25 v collector emitter saturation voltage . In addition, it has a typical 0.47 resistor ratio . The product offers single transistor configuration. It has a maximum operating temperature of +150 °c. It contains 3 pins. Whereas, it has a typical 22 kω input resistor .

pdf icon
Complex Transistor NPN 50V 100mA SOT490(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
