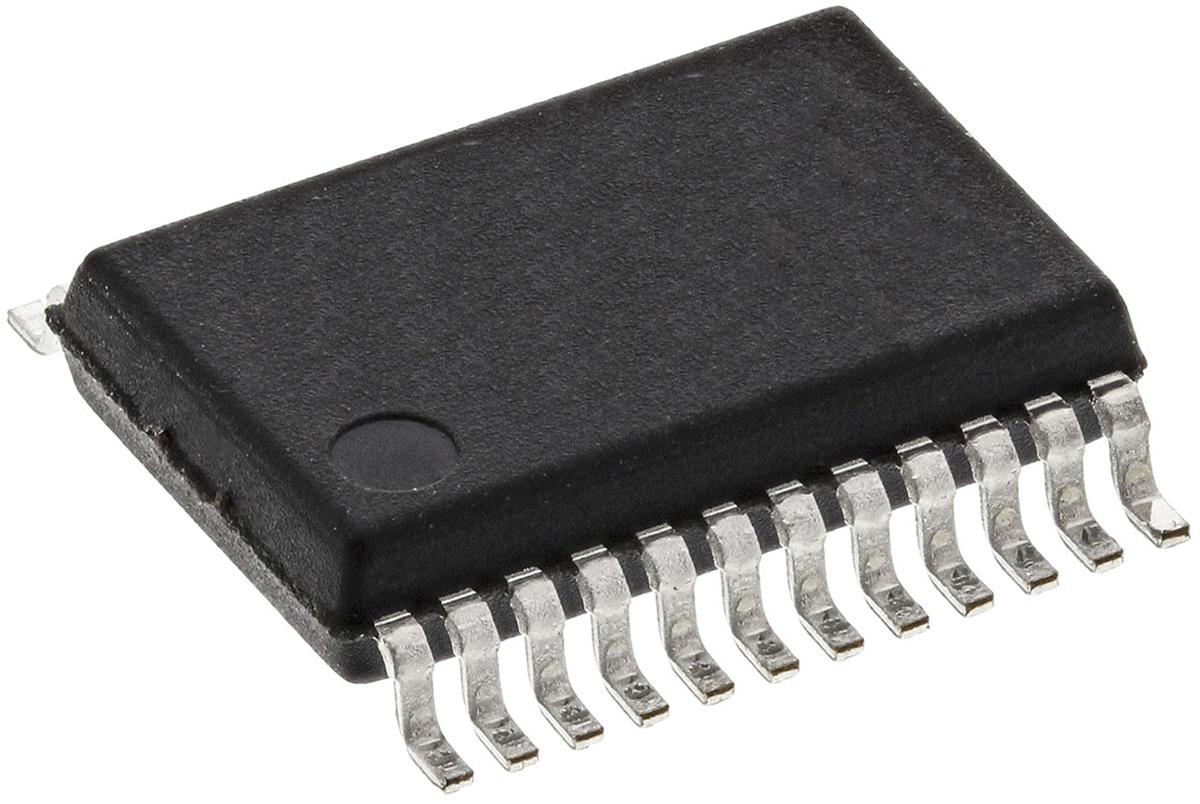

Linear Technology LTC1450CG#PBF, Parallel DAC, 24-Pin SSOP

LTC1450CG-PBF Linear Technology LTC1450CG#PBF, Parallel DAC, 24-Pin SSOP
LTC1450CG#PBF
Analog Devices

Product Information

Voltage Reference:
Internal
Integral Nonlinearity Error:
±4LSB
Dimensions:
8.33 x 5.38 x 1.78mm
Mounting Type:
Surface Mount
Number of DAC Channels:
1
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
14µs
Digital Interface Type:
Parallel
Typical Single Supply Voltage:
4.5 to 5.5 V
Full Scale Error:
±0.5LSB
Package Type:
SSOP
Architecture:
R-2R, Resistor String
Output Polarity:
Bipolar
Maximum Operating Temperature:
85 °C
Resolution:
12 bit
Pin Count:
24
RoHs Compliant
Checking for live stock

This is Linear Technology Parallel DAC 24-Pin SSOP manufactured by Analog Devices. The manufacturer part number is LTC1450CG#PBF. The product has internal voltage reference. Its integral nonlinearity error is ±4lsb . The given dimensions of the product include 8.33 x 5.38 x 1.78mm. The product is available in surface mount configuration. Additionally, it includes 1 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 14µs setting time . Additionally, the product has a/an parallel type digital interface . It has a typical single supply voltage of 4.5 to 5.5 v. It has a full scale error of ±0.5lsb . The package is a sort of ssop. The product has been designed as r-2r, resistor string. It has bipolar polarity . It has a maximum operating temperature of 85 °c. Features 12 bit resolution. It contains 24 pins.

pdf icon
LTC1450/LTC1450L, Parallel Input, 12-Bit Rail-to-Rail Micropower DACs in SSOP(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
