Microchip MCP4922-E/SL, 2-channel 12 bit Serial DAC, 14-Pin SOIC

Enrgtech Part No: ET16766440
|
Manufacturer Part No:
MCP4922-E/SL
|
Manufacturer: Microchip

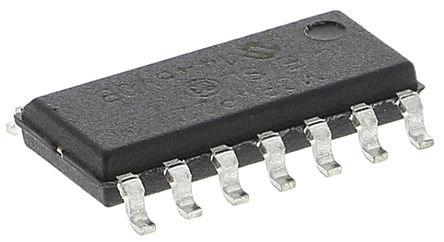

MCP4922-E-SL Microchip MCP4922-E/SL, 2-channel 12 bit Serial DAC, 14-Pin SOIC

Product Information

Voltage Reference:

External

Integral Nonlinearity Error:

±12LSB

Dimensions:

8.65 x 3.9 x 1.5mm

Mounting Type:

Surface Mount

Number of DAC Channels:

Power Supply Type:

Single

Minimum Operating Temperature:

-40 °C

Maximum Settling Time:

4.5µs

Digital Interface Type:

Serial (SPI/Microwire)

Typical Single Supply Voltage:

2.7 to 5.5 V

Full Scale Error:

1%FSR

Package Type:

SOIC

Checking for live stock

This is 2-channel 12 bit Serial DAC 14-Pin SOIC manufactured by Microchip. The manufacturer part number is MCP4922-E/SL. The product has external voltage reference. Its integral nonlinearity error is ±12lsb . The given dimensions of the product include 8.65 x 3.9 x 1.5mm. The product is available in surface mount configuration. Additionally, it includes 2 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 4.5µs setting time . Additionally, the product has a/an serial (spi/microwire) type digital interface . It has a typical single supply voltage of 2.7 to 5.5 v. It has a full scale error of 1%fsr . The package is a sort of soic. The product has been designed as resistor string. It has bipolar polarity . It has a maximum operating temperature of 125 °c. Features 12 bit resolution. It contains 14 pins.

Datasheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search MCP4922-E/SL on website for other similar products.

We accept all major payment methods for all products including ET16766440. Please check your shopping cart at the time of order.

You can order Microchip brand products with MCP4922-E/SL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Digital to Analogue Converters category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Microchip MCP4922-E/SL, 2-channel 12 bit Serial DAC, 14-Pin SOIC. You can also check on our website or by contacting our customer support team for further order details on Microchip MCP4922-E/SL, 2-channel 12 bit Serial DAC, 14-Pin SOIC.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET16766440 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Microchip" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16766440.

Yes. We ship MCP4922-E/SL Internationally to many countries around the world.
