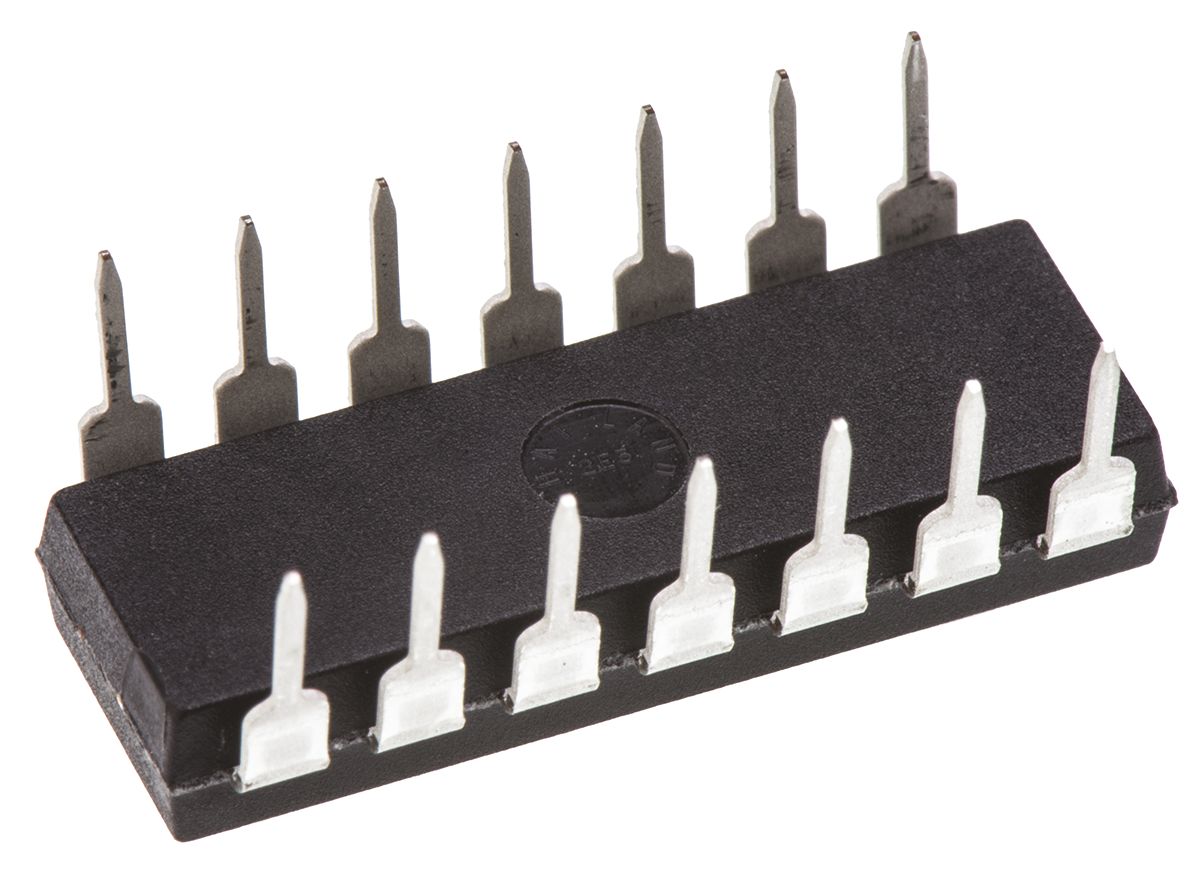

Microchip MCP4922-E/P, 2-Channel 12 bit Serial DAC, 14-Pin PDIP

Enrgtech Part No: ET16766439
|
Manufacturer Part No:
MCP4922-E/P
|
Manufacturer: Microchip

MCP4922-E-P Microchip MCP4922-E/P, 2-Channel 12 bit Serial DAC, 14-Pin PDIP

Product Information

Voltage Reference:

External

Integral Nonlinearity Error:

±12LSB

Dimensions:

19.69 x 7.11 x 4.95mm

Mounting Type:

Through Hole

Number of DAC Channels:

Power Supply Type:

Single

Minimum Operating Temperature:

-40 °C

Maximum Settling Time:

4.5µs

Digital Interface Type:

Serial (SPI/Microwire)

Typical Single Supply Voltage:

2.7 to 5.5 V

Package Type:

PDIP

Architecture:

Resistor String

Checking for live stock

The Microchip MCP4922-E/P is a high-performance, 2-channel, 12-bit digital-to-analog converter (DAC) housed in a 14-pin PDIP package. Designed for precision and ease of use, this DAC provides reliable and accurate analogue output in various applications, making it ideal for both industrial and consumer electronics. With its simple serial interface and wide range of operating voltages, the MCP4922-E/P is perfect for integrating into existing systems or developing new solutions that require precise analogue signal control.

Key Specifications of the Microchip MCP4922-E/P, 2-Channel 12-bit Serial DAC, 14-Pin PDIP

Dual-channel output
12-bit resolution for high precision
14-pin PDIP for easy integration
Wide operating voltage range (2.7V to 5.5V)
Low power consumption
Fast settling time

Benefits for You

Reliable analogue signal conversion
High accuracy and stability
Simplified serial interface

The Microchip MCP4922-E/P, 2-Channel 12-bit Serial DAC, 14-Pin PDIP: Use Cases

Industrial Automation
Audio Equipment
Data Acquisition Systems
Instrumentation
