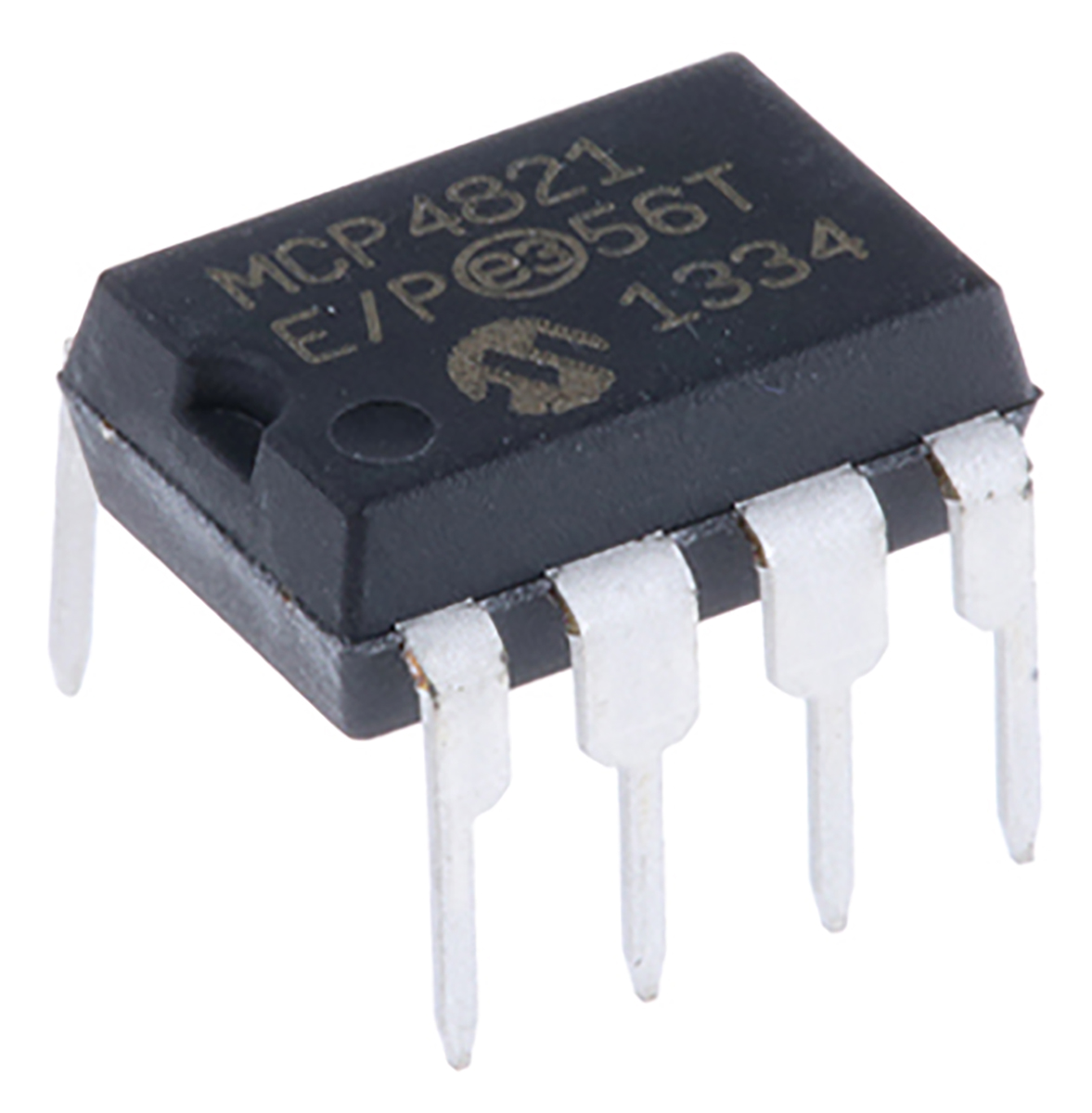

Microchip MCP4821-E/P, 12 bit Serial DAC, 8-Pin PDIP

Enrgtech Part No: ET16766433
|
Manufacturer Part No:
MCP4821-E/P
|
Manufacturer: Microchip

MCP4821-E-P Microchip MCP4821-E/P, 12 bit Serial DAC, 8-Pin PDIP

Product Information

Voltage Reference:

Internal

Integral Nonlinearity Error:

±12LSB

Dimensions:

10.16 x 7.11 x 4.95mm

Mounting Type:

Through Hole

Number of DAC Channels:

Power Supply Type:

Single

Minimum Operating Temperature:

-40 °C

Maximum Settling Time:

4.5µs

Digital Interface Type:

Serial (SPI)

Typical Single Supply Voltage:

2.7 to 5.5 V

Full Scale Error:

12LSB

Package Type:

PDIP

Checking for live stock

This is 12 bit Serial DAC 8-Pin PDIP manufactured by Microchip. The manufacturer part number is MCP4821-E/P. The product has internal voltage reference. Its integral nonlinearity error is ±12lsb . The given dimensions of the product include 10.16 x 7.11 x 4.95mm. The product is available in through hole configuration. Additionally, it includes 1 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 4.5µs setting time . Additionally, the product has a/an serial (spi) type digital interface . It has a typical single supply voltage of 2.7 to 5.5 v. It has a full scale error of 12lsb . The package is a sort of pdip. The product has been designed as resistor string. It has bipolar polarity . It has a maximum operating temperature of 125 °c. Features 12 bit resolution. It contains 8 pins.
