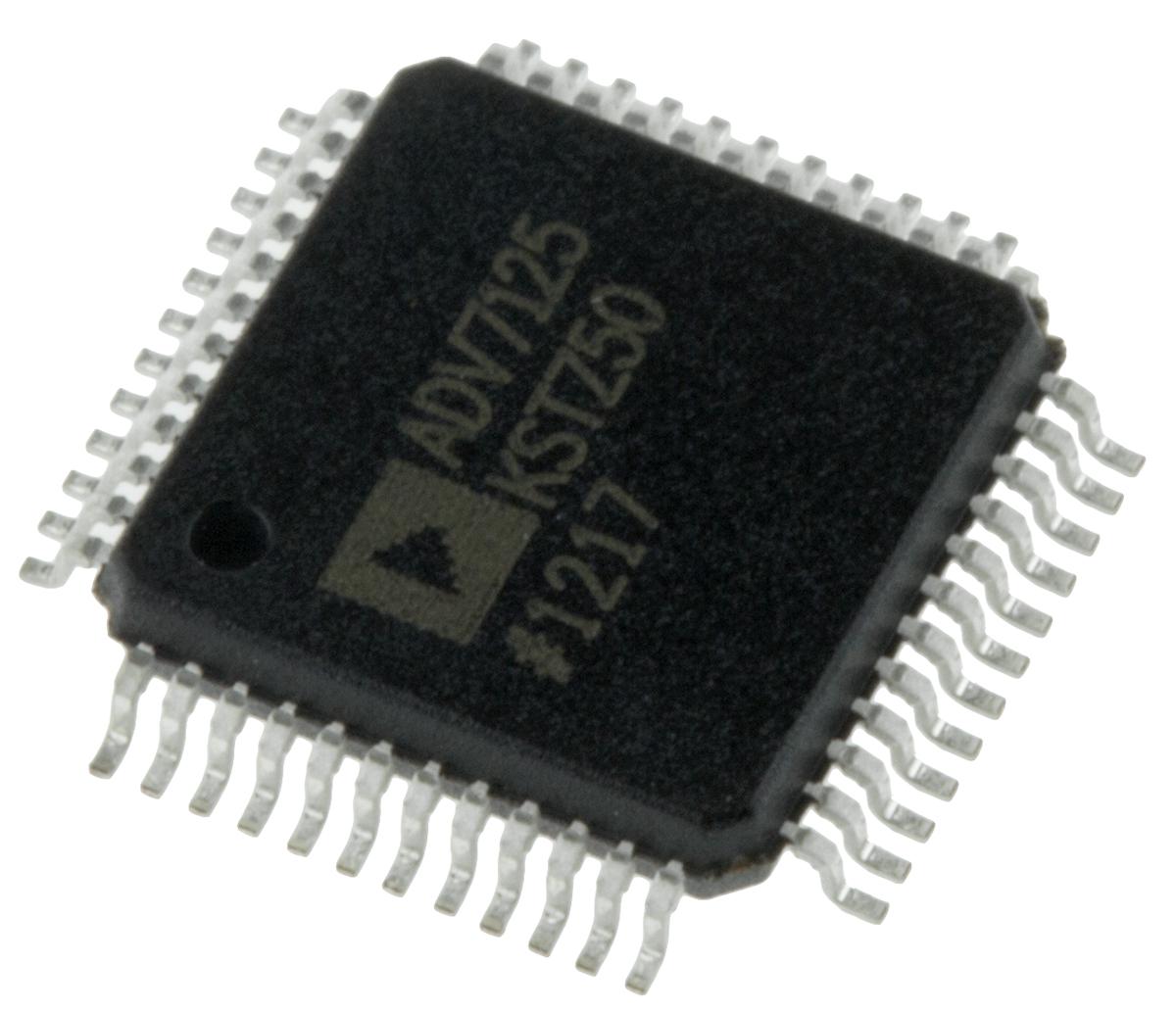

ADV7125KSTZ50, Video DAC Triple, 8 bit- 50Msps ±5%FSR Parallel, 48-Pin LQFP

ADV7125KSTZ50 , Video DAC Triple, 8 bit- 50Msps ±5%FSR Parallel, 48-Pin LQFP
Analog Devices

Product Information

Conversion Rate:
50Msps
Integral Nonlinearity Error:
±1LSB
Dimensions:
7 x 7 x 1.4mm
Mounting Type:
Surface Mount
Number of DAC Channels:
3
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Digital Interface Type:
Parallel
Typical Single Supply Voltage:
3.3 V, 5 V
Full Scale Error:
±5%FSR
Package Type:
LQFP
Architecture:
Segmented
Output Polarity:
Unipolar
Voltage Reference:
External, Internal
Maximum Operating Temperature:
85 °C
Resolution:
8 bit
Pin Count:
48
RoHs Compliant
Checking for live stock

This is Video DAC Triple 8 bit- 50Msps ±5%FSR Parallel 48-Pin LQFP manufactured by Analog Devices. The manufacturer part number is ADV7125KSTZ50. Its conversion rate is 50msps . Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 7 x 7 x 1.4mm. The product is available in surface mount configuration. Additionally, it includes 3 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an parallel type digital interface . It has a typical single supply voltage of 3.3 v, 5 v. It has a full scale error of ±5%fsr . The package is a sort of lqfp. The product has been designed as segmented. It has unipolar polarity . The product has external, internal voltage reference. It has a maximum operating temperature of 85 °c. Features 8 bit resolution. It contains 48 pins.

pdf icon
ADV7125, CMOS, 330MHz Triple 8-Bit High Speed Video DAC(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
