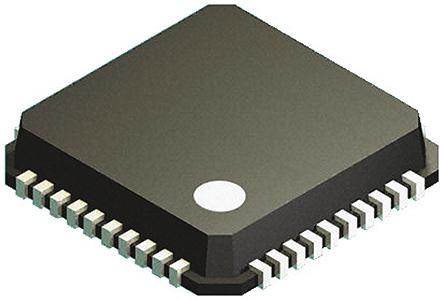

Analog Devices AD9116BCPZ, 2-channel 12 bit Serial DAC, 125Msps, 40-Pin LFCSP VQ

AD9116BCPZ Analog Devices , 2-channel 12 bit Serial DAC, 125Msps, 40-Pin LFCSP VQ
Analog Devices

Product Information

Conversion Rate:
125Msps
Dimensions:
6.1 x 6.1 x 0.95mm
Mounting Type:
Surface Mount
Number of DAC Channels:
2
Power Supply Type:
Single
Maximum Settling Time:
11.5ns
Digital Interface Type:
Serial (SPI)
Typical Single Supply Voltage:
1.7 to 3.5 V
Package Type:
LFCSP VQ
Architecture:
Segmented
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
85 °C
Resolution:
12 bit
Pin Count:
40
RoHs Compliant
Checking for live stock

This is 2-channel 12 bit Serial DAC 125Msps 40-Pin LFCSP VQ manufactured by Analog Devices. The manufacturer part number is AD9116BCPZ. Its conversion rate is 125msps . The given dimensions of the product include 6.1 x 6.1 x 0.95mm. The product is available in surface mount configuration. Additionally, it includes 2 standard DAC channels . It is a type of single power supply. The product has a maximum 11.5ns setting time . Additionally, the product has a/an serial (spi) type digital interface . It has a typical single supply voltage of 1.7 to 3.5 v. The package is a sort of lfcsp vq. The product has been designed as segmented. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of 85 °c. Features 12 bit resolution. It contains 40 pins.

pdf icon
AD9114/AD9115/AD9116/AD9117 Dual Low Power, 8-/10-/12-/14-Bit TxDAC Digital-to-Analog Converters Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
UG-073: Evaluation Board User Guide for the AD9114/AD9115/AD9116/AD9117 and AD9714/AD9715/AD9716/AD9717(Technical Reference)
