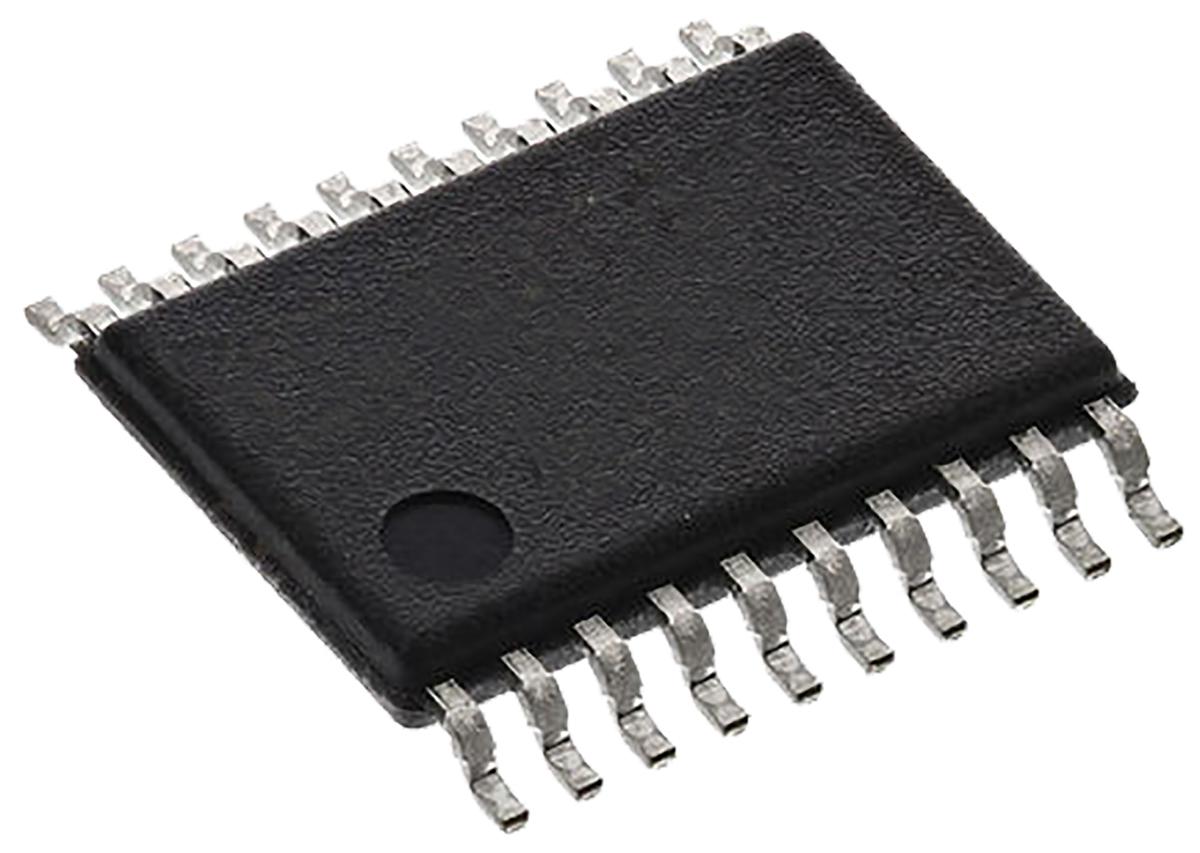

Analog Devices AD5781ARUZ, 18 bit Serial DAC, 20-Pin TSSOP

AD5781ARUZ Analog Devices , 18 bit Serial DAC, 20-Pin TSSOP
AD5781ARUZ
Analog Devices

Product Information

Voltage Reference:
External, Internal
Integral Nonlinearity Error:
±4LSB
Dimensions:
6.6 x 4.5 x 1.05mm
Mounting Type:
Surface Mount
Number of DAC Channels:
1
Power Supply Type:
Dual
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
1µs
Digital Interface Type:
Serial (SPI)
Full Scale Error:
±5.25LSB
Package Type:
TSSOP
Architecture:
R-2R, Resistor String
Output Polarity:
Bipolar
Maximum Operating Temperature:
125 °C
Resolution:
18 bit
Pin Count:
20
RoHs Compliant
Checking for live stock

This is 18 bit Serial DAC 20-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is AD5781ARUZ. The product has external, internal voltage reference. Its integral nonlinearity error is ±4lsb . The given dimensions of the product include 6.6 x 4.5 x 1.05mm. The product is available in surface mount configuration. Additionally, it includes 1 standard DAC channels . It is a type of dual power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 1µs setting time . Additionally, the product has a/an serial (spi) type digital interface . It has a full scale error of ±5.25lsb . The package is a sort of tssop. The product has been designed as r-2r, resistor string. It has bipolar polarity . It has a maximum operating temperature of 125 °c. Features 18 bit resolution. It contains 20 pins.

pdf icon
True 18-Bit, Voltage Output DAC ±0.5 LSB INL, ±0.5 LSB DNL(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
