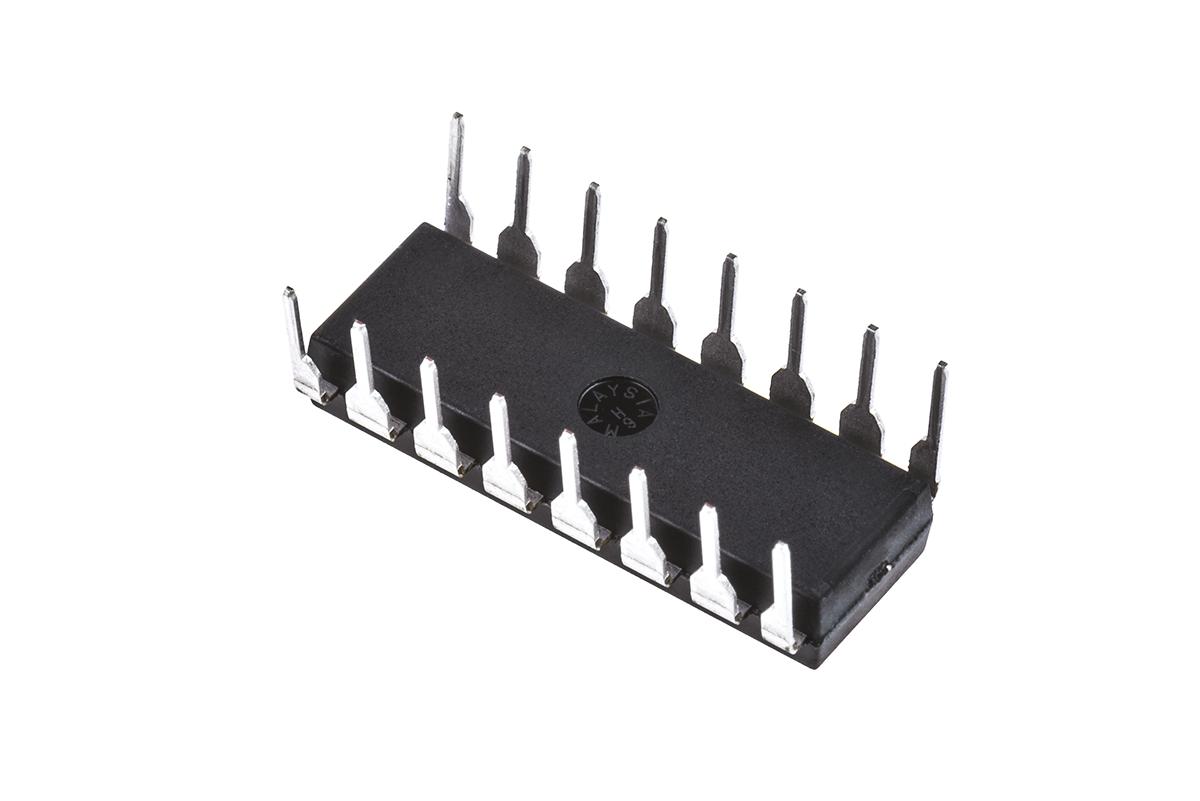

Analog Devices AD557JNZ, 8 bit Parallel DAC, 1.25Msps, 16-Pin PDIP

AD557JNZ Analog Devices , 8 bit Parallel DAC, 1.25Msps, 16-Pin PDIP
AD557JNZ
Analog Devices

Product Information

Conversion Rate:
1.25Msps
Integral Nonlinearity Error:
1LSB
Dimensions:
22.1 x 6.35 x 4.57mm
Mounting Type:
Through Hole
Number of DAC Channels:
1
Power Supply Type:
Single
Minimum Operating Temperature:
0 °C
Maximum Settling Time:
1.5µs
Digital Interface Type:
Parallel
Typical Single Supply Voltage:
5 V
Package Type:
PDIP
Architecture:
R-2R, Resistor String
Output Polarity:
Unipolar
Voltage Reference:
Internal
Maximum Operating Temperature:
70 °C
Resolution:
8 bit
Pin Count:
16
RoHs Compliant
Checking for live stock

This is 8 bit Parallel DAC 1.25Msps 16-Pin PDIP manufactured by Analog Devices. The manufacturer part number is AD557JNZ. Its conversion rate is 1.25msps . Its integral nonlinearity error is 1lsb . The given dimensions of the product include 22.1 x 6.35 x 4.57mm. The product is available in through hole configuration. Additionally, it includes 1 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is 0 °c. The product has a maximum 1.5µs setting time . Additionally, the product has a/an parallel type digital interface . It has a typical single supply voltage of 5 v. The package is a sort of pdip. The product has been designed as r-2r, resistor string. It has unipolar polarity . The product has internal voltage reference. It has a maximum operating temperature of 70 °c. Features 8 bit resolution. It contains 16 pins.

pdf icon
AD557JNZ Data Sheet(Technical Reference)
pdf icon
Digital to Analog Converters ICs Solutions Bulletin, Volume 11, Issue 5(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
