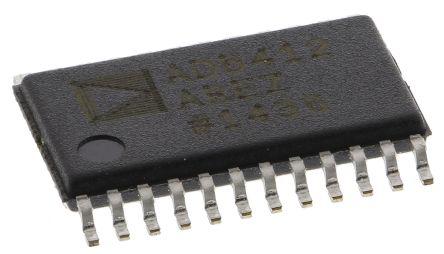

Analog Devices AD5412AREZ, 12 bit Serial DAC, 40ksps, 24-Pin TSSOP

AD5412AREZ Analog Devices , 12 bit Serial DAC, 40ksps, 24-Pin TSSOP
AD5412AREZ
Analog Devices

Product Information

Conversion Rate:
40ksps
Integral Nonlinearity Error:
±0.032%FSR
Dimensions:
7.8 x 4.4 x 1mm
Mounting Type:
Surface Mount
Number of DAC Channels:
1
Power Supply Type:
Dual, Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
40µs
Digital Interface Type:
Serial (SPI/QSPI/Microwire)
Typical Single Supply Voltage:
12 V, 15 V, 18 V, 24 V, 28 V
Full Scale Error:
±0.2%FSR
Package Type:
TSSOP
Architecture:
R-2R, Resistor String
Output Polarity:
Bipolar, Unipolar
Voltage Reference:
External, Internal
Maximum Operating Temperature:
85 °C
Resolution:
12 bit
Pin Count:
24
RoHs Compliant
Checking for live stock

This is 12 bit Serial DAC 40ksps 24-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is AD5412AREZ. Its conversion rate is 40ksps . Its integral nonlinearity error is ±0.032%fsr . The given dimensions of the product include 7.8 x 4.4 x 1mm. The product is available in surface mount configuration. Additionally, it includes 1 standard DAC channels . It is a type of dual, single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 40µs setting time . Additionally, the product has a/an serial (spi/qspi/microwire) type digital interface . It has a typical single supply voltage of 12 v, 15 v, 18 v, 24 v, 28 v. It has a full scale error of ±0.2%fsr . The package is a sort of tssop. The product has been designed as r-2r, resistor string. It has bipolar, unipolar polarity . The product has external, internal voltage reference. It has a maximum operating temperature of 85 °c. Features 12 bit resolution. It contains 24 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
