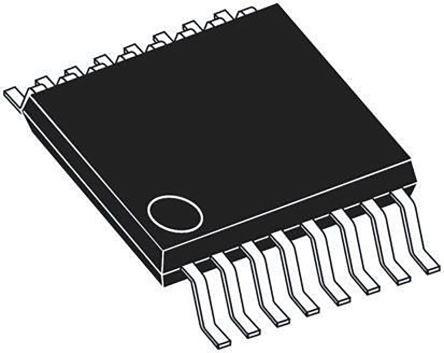

Analog Devices AD7304BRUZ, 4-channel 8 bit Serial DAC, 1Msps, 16-Pin TSSOP

AD7304BRUZ Analog Devices , 4-channel 8 bit Serial DAC, 1Msps, 16-Pin TSSOP
AD7304BRUZ
Analog Devices

Product Information

Conversion Rate:
1Msps
Integral Nonlinearity Error:
±1LSB
Dimensions:
5 x 4.4 x 1.05mm
Mounting Type:
Surface Mount
Number of DAC Channels:
4
Power Supply Type:
Dual, Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
2µs
Digital Interface Type:
Serial (SPI)
Typical Single Supply Voltage:
3 V, 5 V
Full Scale Error:
±4LSB
Package Type:
TSSOP
Architecture:
R-2R, Resistor String
Output Polarity:
Bipolar, Unipolar
Voltage Reference:
External
Maximum Operating Temperature:
85 °C
Resolution:
8 bit
Pin Count:
16
RoHs Compliant
Checking for live stock

This is 4-channel 8 bit Serial DAC 1Msps 16-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is AD7304BRUZ. Its conversion rate is 1msps . Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 5 x 4.4 x 1.05mm. The product is available in surface mount configuration. Additionally, it includes 4 standard DAC channels . It is a type of dual, single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 2µs setting time . Additionally, the product has a/an serial (spi) type digital interface . It has a typical single supply voltage of 3 v, 5 v. It has a full scale error of ±4lsb . The package is a sort of tssop. The product has been designed as r-2r, resistor string. It has bipolar, unipolar polarity . The product has external voltage reference. It has a maximum operating temperature of 85 °c. Features 8 bit resolution. It contains 16 pins.
