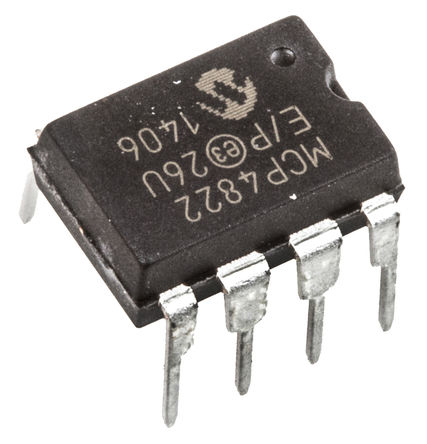

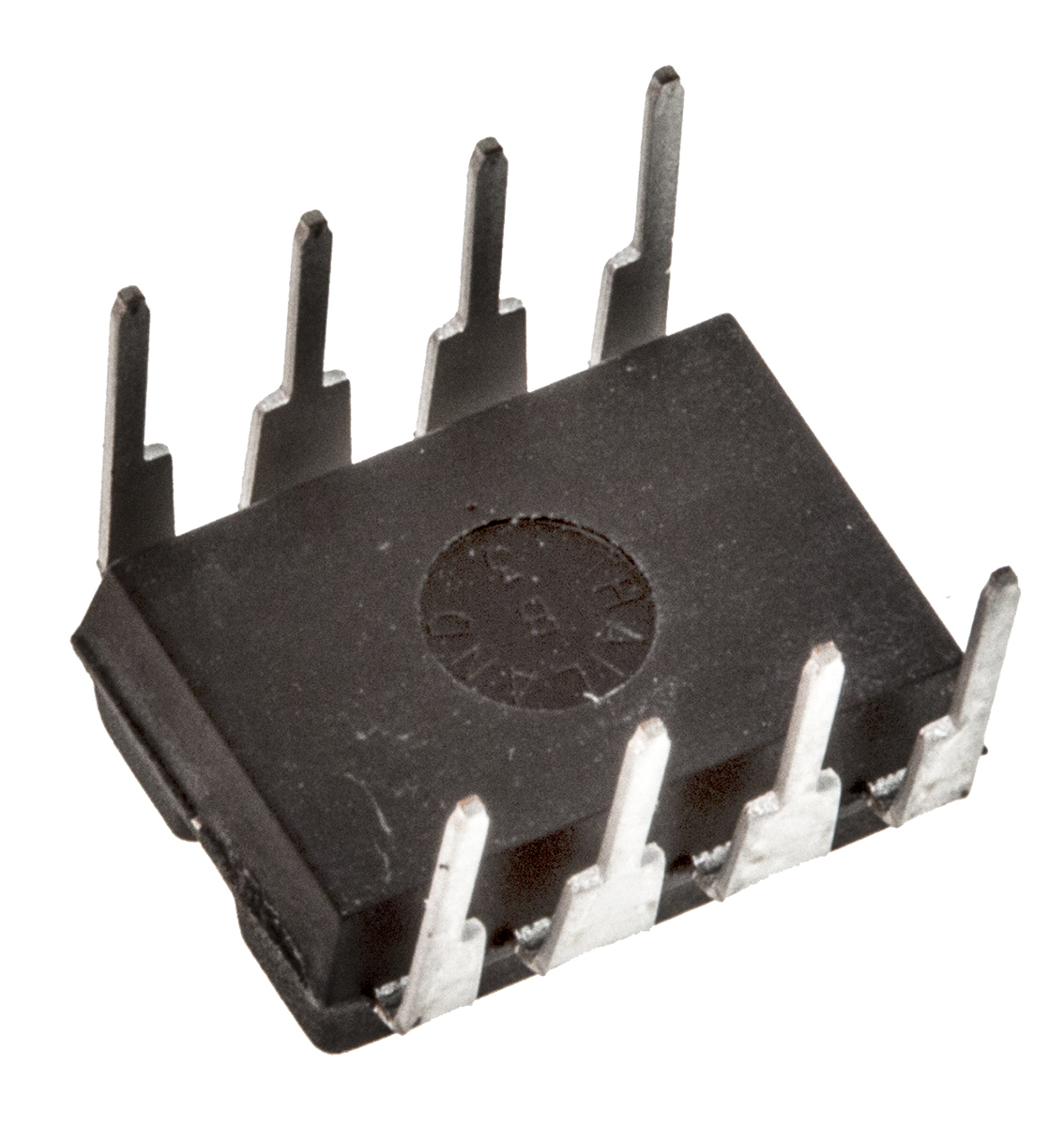

Microchip MCP4822-E/P, 2-channel 12 bit Serial DAC, 8-Pin PDIP

Enrgtech Part No: ET14112006
|
Manufacturer Part No:
MCP4822-E/P
|
Manufacturer: Microchip

MCP4822-E-P Microchip MCP4822-E/P, 2-channel 12 bit Serial DAC, 8-Pin PDIP

Product Information

Voltage Reference:

Internal

Integral Nonlinearity Error:

±12LSB

Dimensions:

9.4 x 6.35 x 3.3mm

Mounting Type:

Through Hole

Number of DAC Channels:

Power Supply Type:

Single

Minimum Operating Temperature:

-40 °C

Maximum Settling Time:

4.5µs

Digital Interface Type:

Serial (SPI/Microwire)

Typical Single Supply Voltage:

5 V

Full Scale Error:

±2%FSR

Package Type:

PDIP

Checking for live stock

This is 2-channel 12 bit Serial DAC 8-Pin PDIP manufactured by Microchip. The manufacturer part number is MCP4822-E/P. The product has internal voltage reference. Its integral nonlinearity error is ±12lsb . The given dimensions of the product include 9.4 x 6.35 x 3.3mm. The product is available in through hole configuration. Additionally, it includes 2 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 4.5µs setting time . Additionally, the product has a/an serial (spi/microwire) type digital interface . It has a typical single supply voltage of 5 v. It has a full scale error of ±2%fsr . The package is a sort of pdip. The product has been designed as resistor string. It has unipolar polarity . It has a maximum operating temperature of 125 °c. Features 12 bit resolution. It contains 8 pins.
