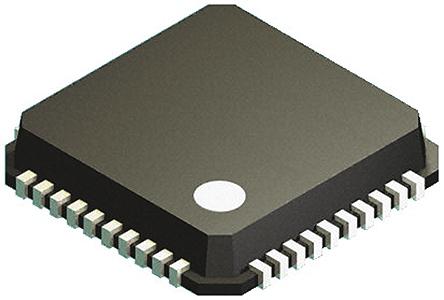

Analog Devices AD9716BCPZ, 2-channel 12 bit Serial DAC, 125Msps, 40-Pin LFCSP VQ

Enrgtech Part No: ET14102295
|
Manufacturer Part No:
AD9716BCPZ
|
Manufacturer: Analog Devices

AD9716BCPZ Analog Devices , 2-channel 12 bit Serial DAC, 125Msps, 40-Pin LFCSP VQ

Product Information

Conversion Rate:

125Msps

Integral Nonlinearity Error:

±0.01LSB

Dimensions:

6 x 6 x 0.95mm

Mounting Type:

Surface Mount

Number of DAC Channels:

Power Supply Type:

Single

Digital Interface Type:

Serial (SPI)

Typical Single Supply Voltage:

1.7 to 3.5 V

Full Scale Error:

±2%FSR

Package Type:

LFCSP VQ

Architecture:

Segmented

Minimum Operating Temperature:

-40 °C

Checking for live stock

This is 2-channel 12 bit Serial DAC 125Msps 40-Pin LFCSP VQ manufactured by Analog Devices. The manufacturer part number is AD9716BCPZ. Its conversion rate is 125msps . Its integral nonlinearity error is ±0.01lsb . The given dimensions of the product include 6 x 6 x 0.95mm. The product is available in surface mount configuration. Additionally, it includes 2 standard DAC channels . It is a type of single power supply. Additionally, the product has a/an serial (spi) type digital interface . It has a typical single supply voltage of 1.7 to 3.5 v. It has a full scale error of ±2%fsr . The package is a sort of lfcsp vq. The product has been designed as segmented. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of 85 °c. Features 12 bit resolution. It contains 40 pins.

AD9714/AD9715/AD9716/AD9717 Dual, Low Power, 8-/10-/12-/14-Bit TxDAC Digital-to-Analog Converters Datasheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
