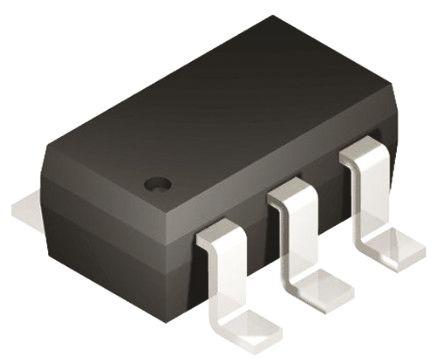

Microchip MCP4706A3T-E/CH, 8 bit Serial DAC, 6-Pin SOT-23

MCP4706A3T-E-CH Microchip MCP4706A3T-E/CH, 8 bit Serial DAC, 6-Pin SOT-23
Microchip

Product Information

Voltage Reference:
External
Integral Nonlinearity Error:
0.907LSB
Dimensions:
3.1 x 1.8 x 1.3mm
Mounting Type:
Surface Mount
Number of DAC Channels:
1
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
6µs
Digital Interface Type:
Serial (I2C)
Typical Single Supply Voltage:
5.5 V
Full Scale Error:
5.2LSB
Package Type:
SOT-23
Architecture:
Resistor String
Output Polarity:
Bipolar
Maximum Operating Temperature:
125 °C
Resolution:
8 bit
Pin Count:
6
RoHs Compliant
Checking for live stock

This is 8 bit Serial DAC 6-Pin SOT-23 manufactured by Microchip. The manufacturer part number is MCP4706A3T-E/CH. The product has external voltage reference. Its integral nonlinearity error is 0.907lsb . The given dimensions of the product include 3.1 x 1.8 x 1.3mm. The product is available in surface mount configuration. Additionally, it includes 1 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 6µs setting time . Additionally, the product has a/an serial (i2c) type digital interface . It has a typical single supply voltage of 5.5 v. It has a full scale error of 5.2lsb . The package is a sort of sot-23. The product has been designed as resistor string. It has bipolar polarity . It has a maximum operating temperature of 125 °c. Features 8 bit resolution. It contains 6 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
