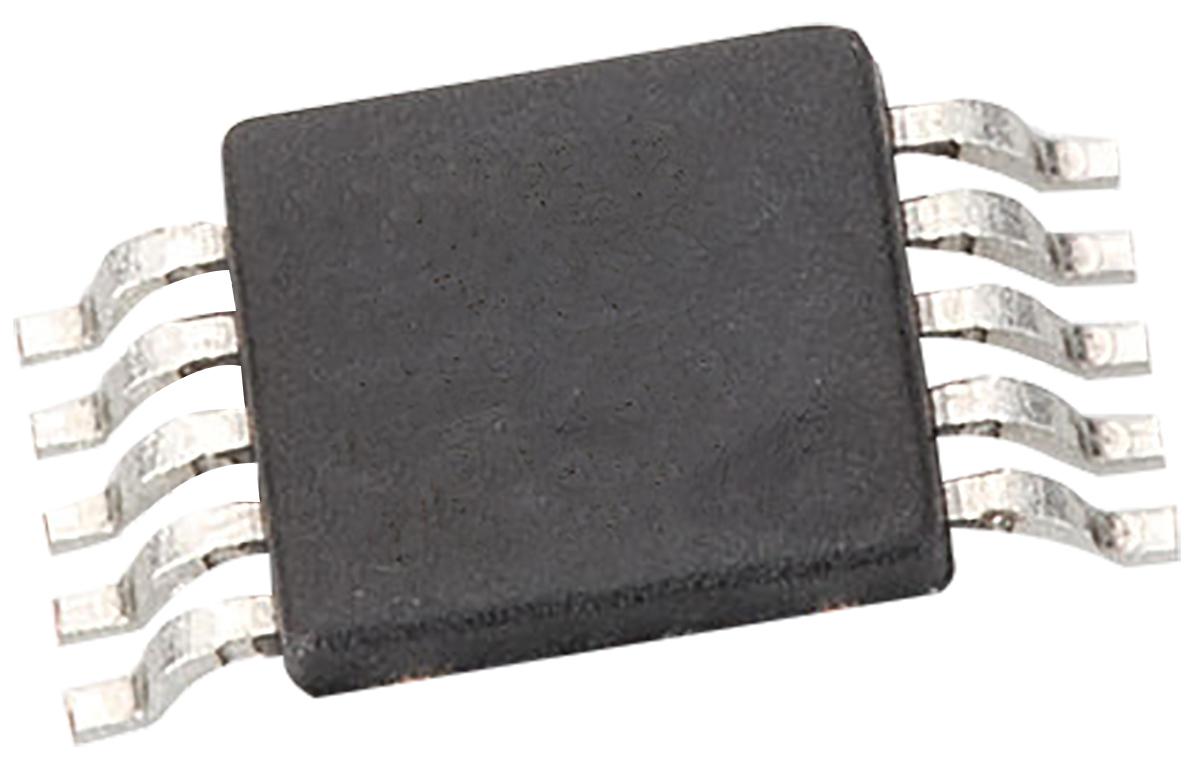

Analog Devices AD5305BRMZ, 4-channel 8 bit Serial DAC, 167ksps, 10-Pin MSOP

AD5305BRMZ Analog Devices , 4-channel 8 bit Serial DAC, 167ksps, 10-Pin MSOP
AD5305BRMZ
Analog Devices

Product Information

Conversion Rate:
167ksps
Integral Nonlinearity Error:
±0.625LSB
Dimensions:
3 x 3 x 0.85mm
Mounting Type:
Surface Mount
Number of DAC Channels:
4
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
8µs
Digital Interface Type:
Serial (I2C)
Typical Single Supply Voltage:
3.3 V, 5 V
Full Scale Error:
±1%FSR
Package Type:
MSOP
Architecture:
Resistor String
Output Polarity:
Unipolar
Voltage Reference:
External
Maximum Operating Temperature:
105 °C
Resolution:
8 bit
Pin Count:
10
RoHs Compliant
Checking for live stock

This is 4-channel 8 bit Serial DAC 167ksps 10-Pin MSOP manufactured by Analog Devices. The manufacturer part number is AD5305BRMZ. Its conversion rate is 167ksps . Its integral nonlinearity error is ±0.625lsb . The given dimensions of the product include 3 x 3 x 0.85mm. The product is available in surface mount configuration. Additionally, it includes 4 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 8µs setting time . Additionally, the product has a/an serial (i2c) type digital interface . It has a typical single supply voltage of 3.3 v, 5 v. It has a full scale error of ±1%fsr . The package is a sort of msop. The product has been designed as resistor string. It has unipolar polarity . The product has external voltage reference. It has a maximum operating temperature of 105 °c. Features 8 bit resolution. It contains 10 pins.

pdf icon
AD5305/AD5315/AD5325, 2.5V to 5.5V, 500μA, 2-Wire Interface Quad Voltage Output, 8-/10-/12-Bit DACs(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
