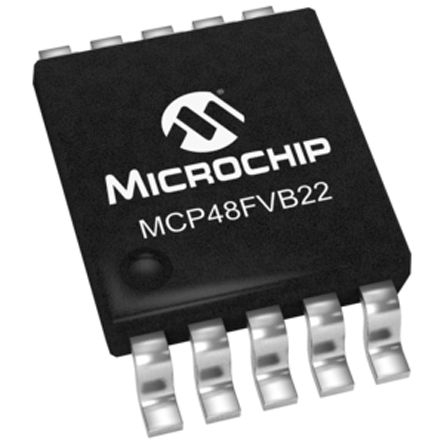

Microchip MCP48FVB22-E/UN, 2-channel 12 bit Serial DAC, 10-Pin MSOP

MCP48FVB22-E-UN Microchip MCP48FVB22-E/UN, 2-channel 12 bit Serial DAC, 10-Pin MSOP
Microchip

Product Information

Voltage Reference:
Internal
Integral Nonlinearity Error:
6LSB
Dimensions:
3 x 3 x 0.95mm
Mounting Type:
Surface Mount
Number of DAC Channels:
2
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
7.8µs
Digital Interface Type:
Serial (SPI)
Typical Single Supply Voltage:
5.5 V
Full Scale Error:
70LSB
Package Type:
MSOP
Architecture:
Resistor String
Output Polarity:
Bipolar
Maximum Operating Temperature:
125 °C
Resolution:
12 bit
Pin Count:
10
RoHs Compliant
Checking for live stock

This is 2-channel 12 bit Serial DAC 10-Pin MSOP manufactured by Microchip. The manufacturer part number is MCP48FVB22-E/UN. The product has internal voltage reference. Its integral nonlinearity error is 6lsb . The given dimensions of the product include 3 x 3 x 0.95mm. The product is available in surface mount configuration. Additionally, it includes 2 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 7.8µs setting time . Additionally, the product has a/an serial (spi) type digital interface . It has a typical single supply voltage of 5.5 v. It has a full scale error of 70lsb . The package is a sort of msop. The product has been designed as resistor string. It has bipolar polarity . It has a maximum operating temperature of 125 °c. Features 12 bit resolution. It contains 10 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
