Name: ADDAC80NZ-CBI-V, Analog Devices
Brand: Analog Devices
SKU: ET14003697
Price: 37.61 GBP
Availability: Discontinued

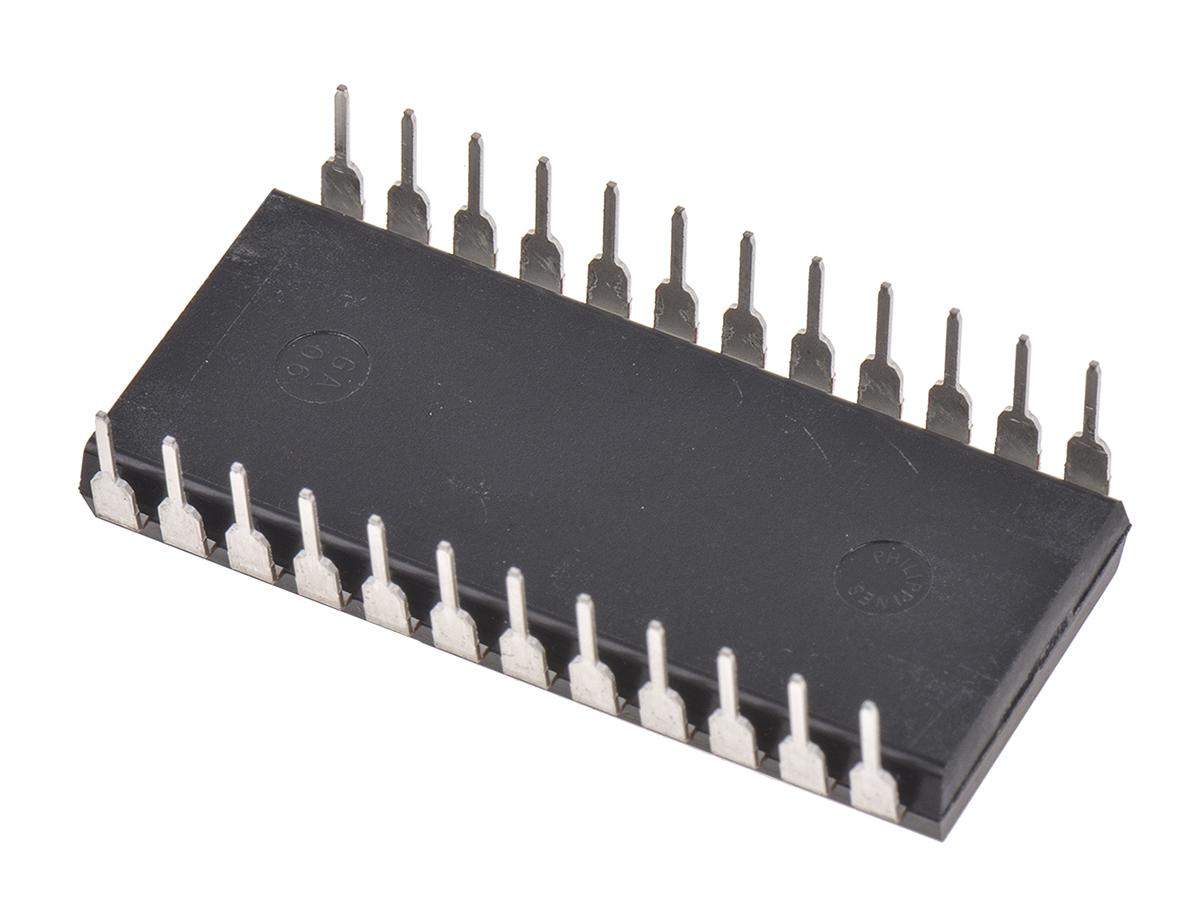

ADDAC80NZ-CBI-V Analog Devices , 12 bit Parallel DAC, 24-Pin PDIP

(0)

Product Information

Voltage Reference:

External, Internal

Integral Nonlinearity Error:

1/2LSB

Dimensions:

32.7 x 14.73 x 4.83mm

Mounting Type:

Through Hole

Number of DAC Channels:

Power Supply Type:

Dual, Single

Minimum Operating Temperature:

0 °C

Maximum Settling Time:

4µs

Digital Interface Type:

Parallel

Typical Single Supply Voltage:

12 V

Package Type:

PDIP

Architecture:

Current Steering

Checking for live stock

This is 12 bit Parallel DAC 24-Pin PDIP manufactured by Analog Devices. The manufacturer part number is ADDAC80NZ-CBI-V. The product has external, internal voltage reference. Its integral nonlinearity error is 1/2lsb . The given dimensions of the product include 32.7 x 14.73 x 4.83mm. The product is available in through hole configuration. Additionally, it includes 1 standard DAC channels . It is a type of dual, single power supply. Whereas, the minimum operating temperature of the product is 0 °c. The product has a maximum 4µs setting time . Additionally, the product has a/an parallel type digital interface . It has a typical single supply voltage of 12 v. The package is a sort of pdip. The product has been designed as current steering. It has bipolar, unipolar polarity . It has a maximum operating temperature of 70 °c. Features 12 bit resolution. It contains 24 pins.

ESD Control Selection Guide V1(Technical Reference)

ADDAC80/ADDAC85/ADDAC87, Complete Low Cost 12-Bit D/A Converters(Technical Reference)
