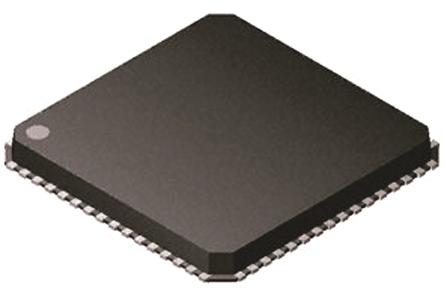

Analog Devices AD5757ACPZ, 16 bit Serial DAC, 64-Pin LFCSP VQ

AD5757ACPZ Analog Devices , 16 bit Serial DAC, 64-Pin LFCSP VQ
Analog Devices

Product Information

Voltage Reference:
External, Internal
Integral Nonlinearity Error:
±1LSB
Dimensions:
9.1 x 9.1 x 0.8mm
Mounting Type:
Surface Mount
Number of DAC Channels:
1
Power Supply Type:
Single
Maximum Settling Time:
15µs
Digital Interface Type:
Serial (SPI/QSPI/Microwire)
Typical Single Supply Voltage:
2.7 to 5.5 V
Full Scale Error:
±0.05%FSR
Package Type:
LFCSP VQ
Architecture:
R-2R
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
105 °C
Resolution:
16 bit
Pin Count:
64
RoHs Compliant
Checking for live stock

This is 16 bit Serial DAC 64-Pin LFCSP VQ manufactured by Analog Devices. The manufacturer part number is AD5757ACPZ. The product has external, internal voltage reference. Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 9.1 x 9.1 x 0.8mm. The product is available in surface mount configuration. Additionally, it includes 1 standard DAC channels . It is a type of single power supply. The product has a maximum 15µs setting time . Additionally, the product has a/an serial (spi/qspi/microwire) type digital interface . It has a typical single supply voltage of 2.7 to 5.5 v. It has a full scale error of ±0.05%fsr . The package is a sort of lfcsp vq. The product has been designed as r-2r. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of 105 °c. Features 16 bit resolution. It contains 64 pins.

pdf icon
AD5757 FMC-SDP Interposer & Evaluation Board / Xilinx KC705 Reference Design(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
