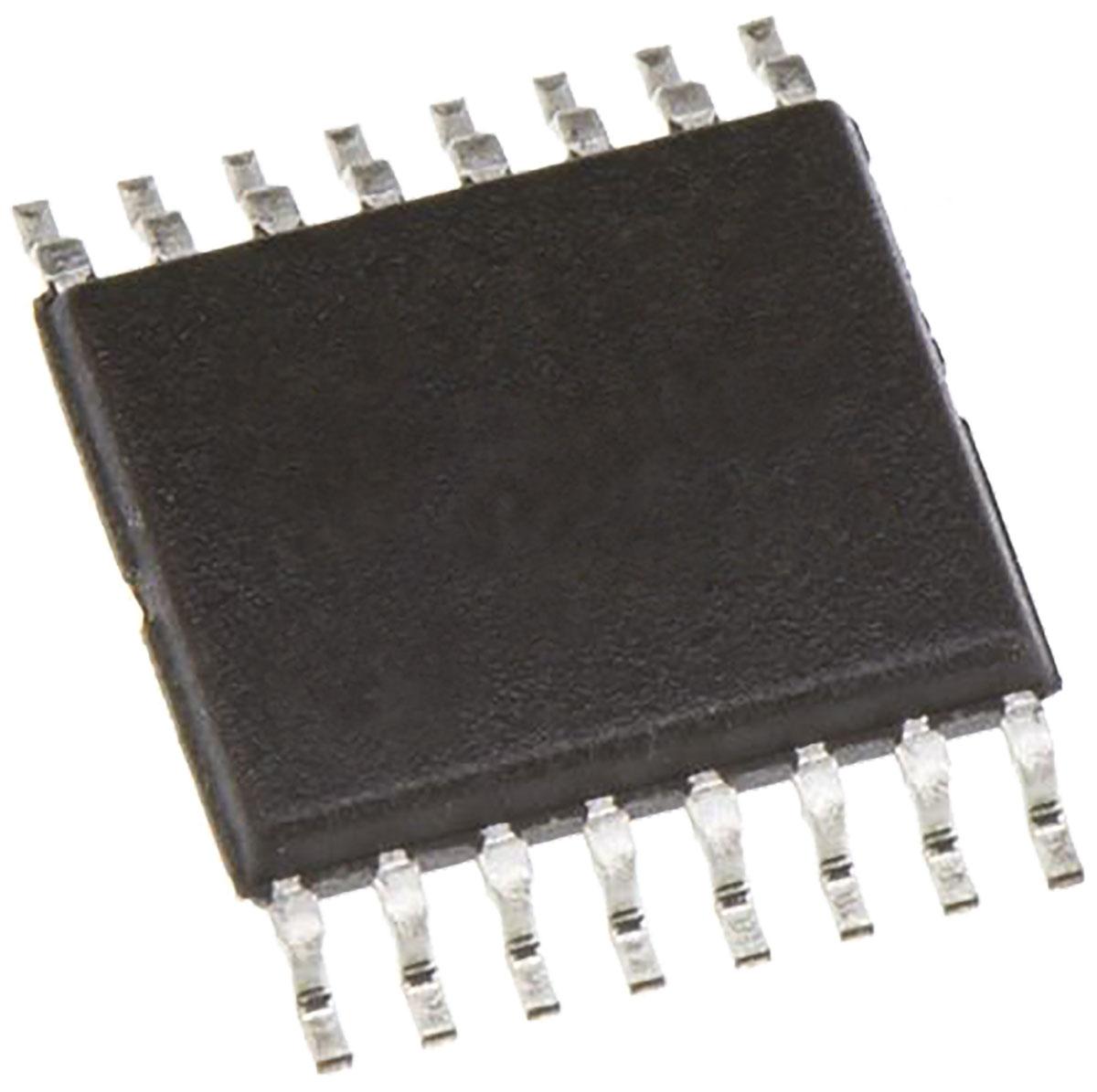

Analog Devices AD5066BRUZ, 4-channel 16 bit Serial DAC, 16-Pin TSSOP

Enrgtech Part No: ET14003359
|
Manufacturer Part No:
AD5066BRUZ
|
Manufacturer: Analog Devices

AD5066BRUZ Analog Devices , 4-channel 16 bit Serial DAC, 16-Pin TSSOP

Product Information

Integral Nonlinearity Error:

±2LSB

Dimensions:

5.1 x 4.5 x 1.05mm

Mounting Type:

Surface Mount

Number of DAC Channels:

Power Supply Type:

Single

Minimum Operating Temperature:

-40 °C

Maximum Settling Time:

15µs

Digital Interface Type:

Serial (SPI/QSPI/Microwire)

Typical Single Supply Voltage:

2.7 to 5.5 V

Full Scale Error:

±0.05%FSR

Package Type:

TSSOP

Architecture:

R-2R

Checking for live stock

This is 4-channel 16 bit Serial DAC 16-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is AD5066BRUZ. Its integral nonlinearity error is ±2lsb . The given dimensions of the product include 5.1 x 4.5 x 1.05mm. The product is available in surface mount configuration. Additionally, it includes 4 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 15µs setting time . Additionally, the product has a/an serial (spi/qspi/microwire) type digital interface . It has a typical single supply voltage of 2.7 to 5.5 v. It has a full scale error of ±0.05%fsr . The package is a sort of tssop. The product has been designed as r-2r. It has bipolar polarity . It has a maximum operating temperature of 125 °c. Features 16 bit resolution. It contains 16 pins.

AD5066, Fully Accurate, 16-Bit, Unbuffered VOUT, Quad SPI Interface, 2.7 V to 5.5 V nanoDAC in a TSSOP(Technical Reference)
