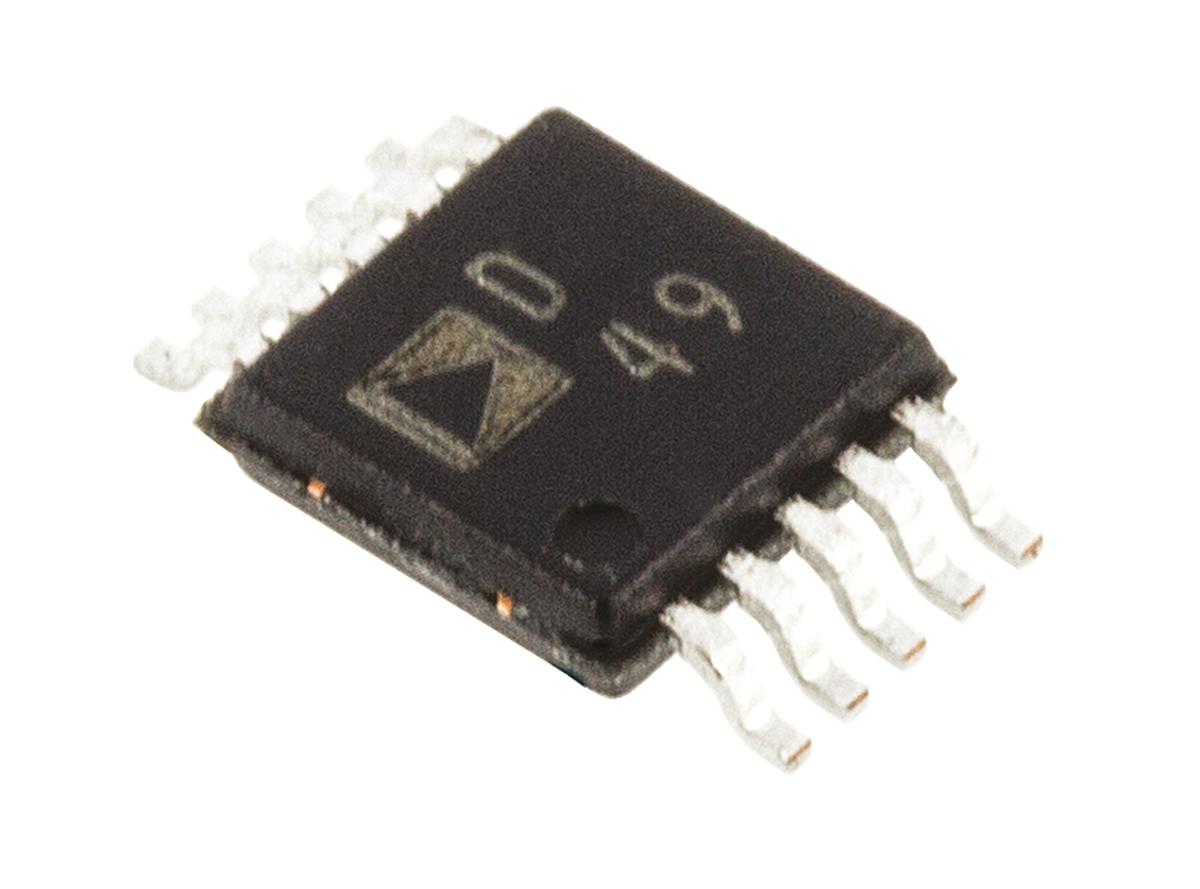

Analog Devices AD5063BRMZ, 16 bit Serial DAC, 333ksps, 10-Pin MSOP

AD5063BRMZ Analog Devices , 16 bit Serial DAC, 333ksps, 10-Pin MSOP
Analog Devices

Product Information

Conversion Rate:
333ksps
Integral Nonlinearity Error:
±1LSB
Dimensions:
3.1 x 3.1 x 0.95mm
Mounting Type:
Surface Mount
Number of DAC Channels:
1
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
4µs
Digital Interface Type:
Serial
Typical Single Supply Voltage:
2.7 to 5 V
Full Scale Error:
±800µV
Package Type:
MSOP
Architecture:
R-2R, Resistor String
Output Polarity:
Bipolar
Voltage Reference:
External
Maximum Operating Temperature:
85 °C
Resolution:
16 bit
Pin Count:
10
RoHs Compliant
Checking for live stock

This is 16 bit Serial DAC 333ksps 10-Pin MSOP manufactured by Analog Devices. The manufacturer part number is AD5063BRMZ. Its conversion rate is 333ksps . Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 3.1 x 3.1 x 0.95mm. The product is available in surface mount configuration. Additionally, it includes 1 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 4µs setting time . Additionally, the product has a/an serial type digital interface . It has a typical single supply voltage of 2.7 to 5 v. It has a full scale error of ±800µv . The package is a sort of msop. The product has been designed as r-2r, resistor string. It has bipolar polarity . The product has external voltage reference. It has a maximum operating temperature of 85 °c. Features 16 bit resolution. It contains 10 pins.

pdf icon
AD5063 Fully Accurate 16-Bit VOUT nanoDAC SPI Interface 2.7 V to 5.5 V in an MSOP Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
