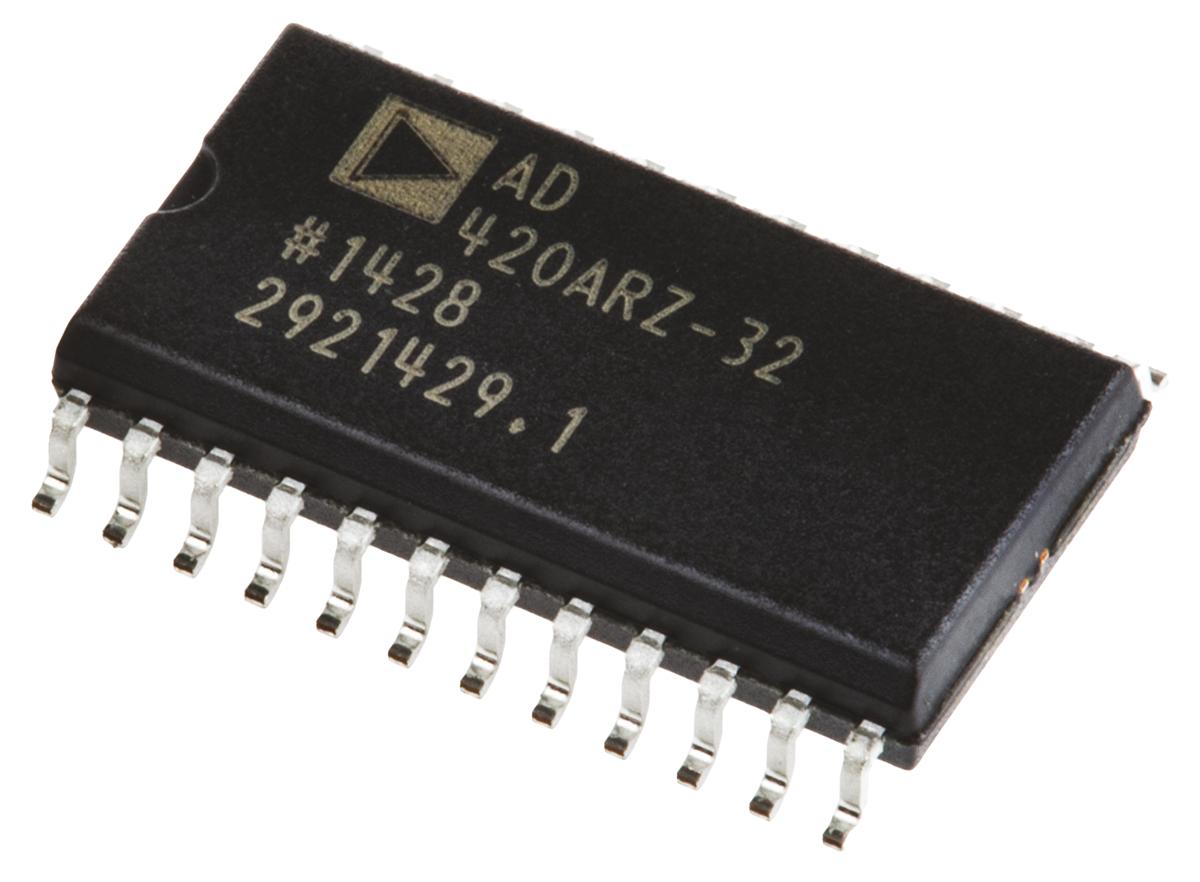

Analog Devices AD420ARZ-32, 16 bit Serial DAC, 400sps, 24-Pin SOIC

AD420ARZ-32 Analog Devices , 16 bit Serial DAC, 400sps, 24-Pin SOIC
AD420ARZ-32
Analog Devices

Product Information

Conversion Rate:
400sps
Integral Nonlinearity Error:
±0.012%FSR
Dimensions:
15.6 x 7.6 x 2.65mm
Mounting Type:
Surface Mount
Number of DAC Channels:
1
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
3ns
Digital Interface Type:
Serial (SPI)
Typical Single Supply Voltage:
32 V
Package Type:
SOIC
Architecture:
Delta Sigma
Output Polarity:
Bipolar
Voltage Reference:
External
Maximum Operating Temperature:
85 °C
Resolution:
16 bit
Pin Count:
24
Checking for live stock

This is 16 bit Serial DAC 400sps 24-Pin SOIC manufactured by Analog Devices. The manufacturer part number is AD420ARZ-32. Its conversion rate is 400sps . Its integral nonlinearity error is ±0.012%fsr . The given dimensions of the product include 15.6 x 7.6 x 2.65mm. The product is available in surface mount configuration. Additionally, it includes 1 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 3ns setting time . Additionally, the product has a/an serial (spi) type digital interface . It has a typical single supply voltage of 32 v. The package is a sort of soic. The product has been designed as delta sigma. It has bipolar polarity . The product has external voltage reference. It has a maximum operating temperature of 85 °c. Features 16 bit resolution. It contains 24 pins.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
AD420, Serial Input 16-Bit 4mA–20mA, 0mA–20mA DAC(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD420ARZ-32 on website for other similar products.
We accept all major payment methods for all products including ET14003356. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD420ARZ-32 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Digital to Analogue Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD420ARZ-32, 16 bit Serial DAC, 400sps, 24-Pin SOIC. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD420ARZ-32, 16 bit Serial DAC, 400sps, 24-Pin SOIC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14003356 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14003356.
Yes. We ship AD420ARZ-32 Internationally to many countries around the world.
