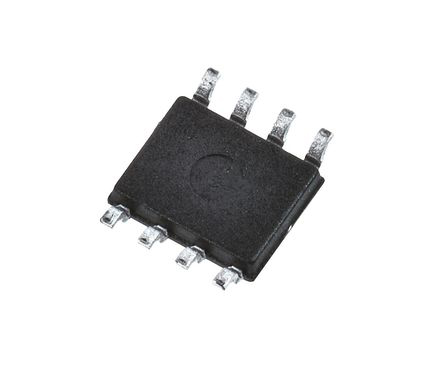

Microchip MCP4822-E/SN, 2-channel 12 bit Serial DAC, 8-Pin SOIC

MCP4822-E-SN Microchip MCP4822-E/SN, 2-channel 12 bit Serial DAC, 8-Pin SOIC
MCP4822-E/SN
Microchip

Product Information

Voltage Reference:
Internal
Integral Nonlinearity Error:
±12LSB
Dimensions:
4.9 x 3.9 x 1.42mm
Mounting Type:
Surface Mount
Number of DAC Channels:
2
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
4.5µs
Digital Interface Type:
Serial (SPI/Microwire)
Typical Single Supply Voltage:
5 V
Full Scale Error:
±2%FSR
Package Type:
SOIC
Architecture:
Resistor String
Output Polarity:
Unipolar
Maximum Operating Temperature:
125 °C
Resolution:
12 bit
Pin Count:
8
RoHs Compliant
Checking for live stock

This is 2-channel 12 bit Serial DAC 8-Pin SOIC manufactured by Microchip. The manufacturer part number is MCP4822-E/SN. The product has internal voltage reference. Its integral nonlinearity error is ±12lsb . The given dimensions of the product include 4.9 x 3.9 x 1.42mm. The product is available in surface mount configuration. Additionally, it includes 2 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 4.5µs setting time . Additionally, the product has a/an serial (spi/microwire) type digital interface . It has a typical single supply voltage of 5 v. It has a full scale error of ±2%fsr . The package is a sort of soic. The product has been designed as resistor string. It has unipolar polarity . It has a maximum operating temperature of 125 °c. Features 12 bit resolution. It contains 8 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
MCP4802/4812/4822 8/10/12-Bit Dual Voltage Output DAC w/ Internal VREF and SPI(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
