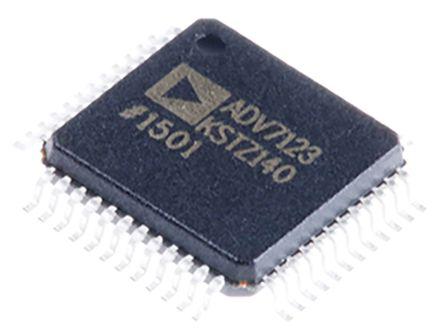

Triple Hi Speed Video DAC ADV7123KSTZ140

ADV7123KSTZ140 Triple Hi Speed Video DAC
Analog Devices

Product Information

Conversion Rate:
140Msps
Integral Nonlinearity Error:
±1LSB
Dimensions:
7 x 7 x 1.4mm
Mounting Type:
Surface Mount
Number of DAC Channels:
3
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Digital Interface Type:
Parallel
Typical Single Supply Voltage:
3.3 V, 5 V
Full Scale Error:
±5%FSR
Package Type:
LQFP
Architecture:
Segmented
Output Polarity:
Unipolar
Voltage Reference:
External, Internal
Maximum Operating Temperature:
85 °C
Resolution:
10 bit
Pin Count:
48
RoHs Compliant
Checking for live stock

This is Triple Hi Speed Video DAC manufactured by Analog Devices. The manufacturer part number is ADV7123KSTZ140. Its conversion rate is 140msps . Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 7 x 7 x 1.4mm. The product is available in surface mount configuration. Additionally, it includes 3 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an parallel type digital interface . It has a typical single supply voltage of 3.3 v, 5 v. It has a full scale error of ±5%fsr . The package is a sort of lqfp. The product has been designed as segmented. It has unipolar polarity . The product has external, internal voltage reference. It has a maximum operating temperature of 85 °c. Features 10 bit resolution. It contains 48 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search ADV7123KSTZ140 on website for other similar products.
We accept all major payment methods for all products including ET13948993. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with ADV7123KSTZ140 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Digital to Analogue Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Triple Hi Speed Video DAC ADV7123KSTZ140. You can also check on our website or by contacting our customer support team for further order details on Triple Hi Speed Video DAC ADV7123KSTZ140.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13948993 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13948993.
Yes. We ship ADV7123KSTZ140 Internationally to many countries around the world.
