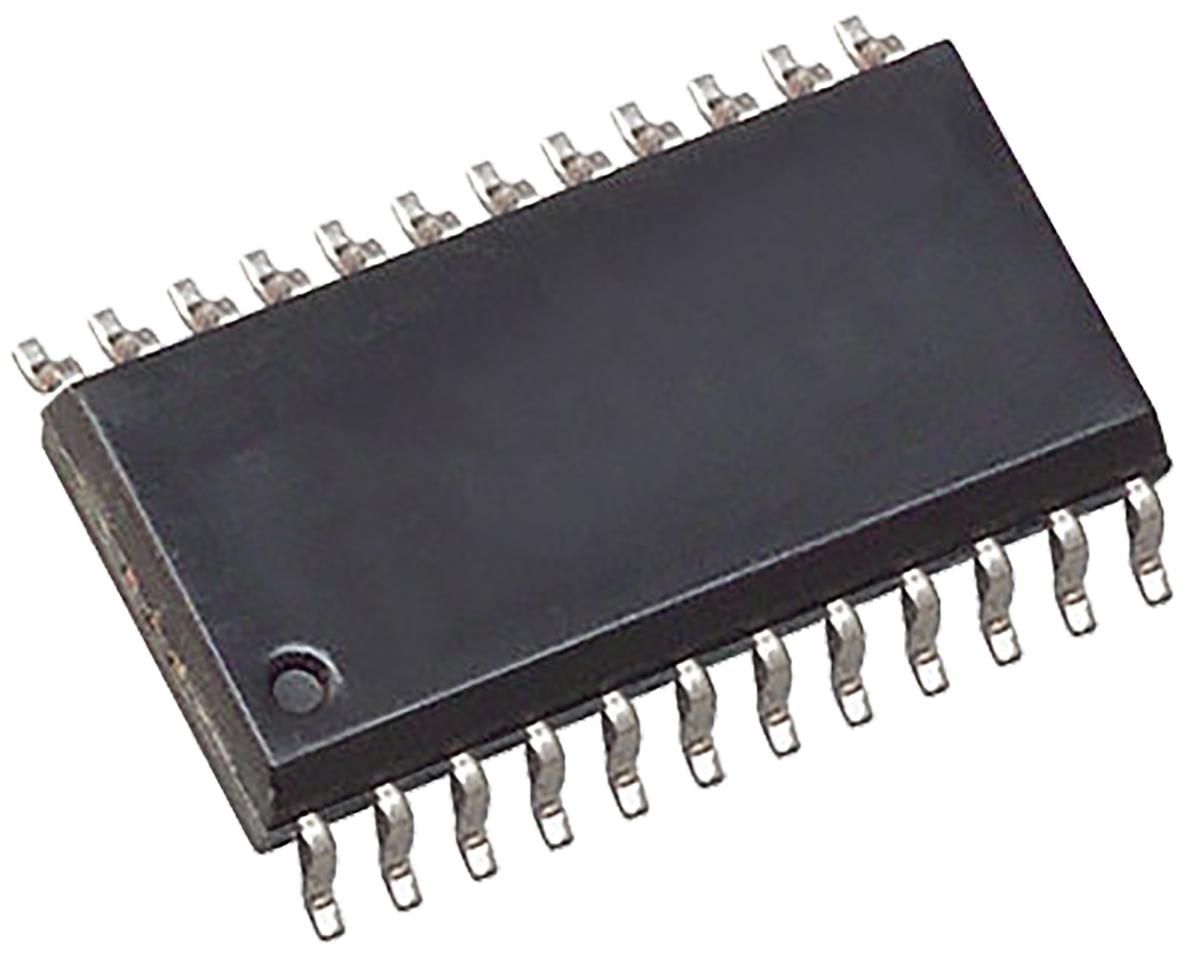

Analog Devices AD7847BRZ, 2-channel 12 bit Parallel DAC, 250ksps, 24-Pin SOIC W

AD7847BRZ Analog Devices , 2-channel 12 bit Parallel DAC, 250ksps, 24-Pin SOIC W
Analog Devices

Product Information

Conversion Rate:
250ksps
Integral Nonlinearity Error:
±0.5LSB
Dimensions:
15.6 x 7.6 x 2.35mm
Mounting Type:
Surface Mount
Number of DAC Channels:
2
Power Supply Type:
Dual
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
5µs
Digital Interface Type:
Parallel
Full Scale Error:
±3LSB
Package Type:
SOIC W
Architecture:
R-2R, Resistor String
Output Polarity:
Unipolar
Voltage Reference:
External
Maximum Operating Temperature:
85 °C
Resolution:
12 bit
Pin Count:
24
RoHs Compliant
Checking for live stock

This is 2-channel 12 bit Parallel DAC 250ksps 24-Pin SOIC W manufactured by Analog Devices. The manufacturer part number is AD7847BRZ. Its conversion rate is 250ksps . Its integral nonlinearity error is ±0.5lsb . The given dimensions of the product include 15.6 x 7.6 x 2.35mm. The product is available in surface mount configuration. Additionally, it includes 2 standard DAC channels . It is a type of dual power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 5µs setting time . Additionally, the product has a/an parallel type digital interface . It has a full scale error of ±3lsb . The package is a sort of soic w. The product has been designed as r-2r, resistor string. It has unipolar polarity . The product has external voltage reference. It has a maximum operating temperature of 85 °c. Features 12 bit resolution. It contains 24 pins.

pdf icon
AD7847BRZ Data Sheet(Technical Reference)
pdf icon
Digital to Analog Converters ICs Solutions Bulletin, Volume 11, Issue 5(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
