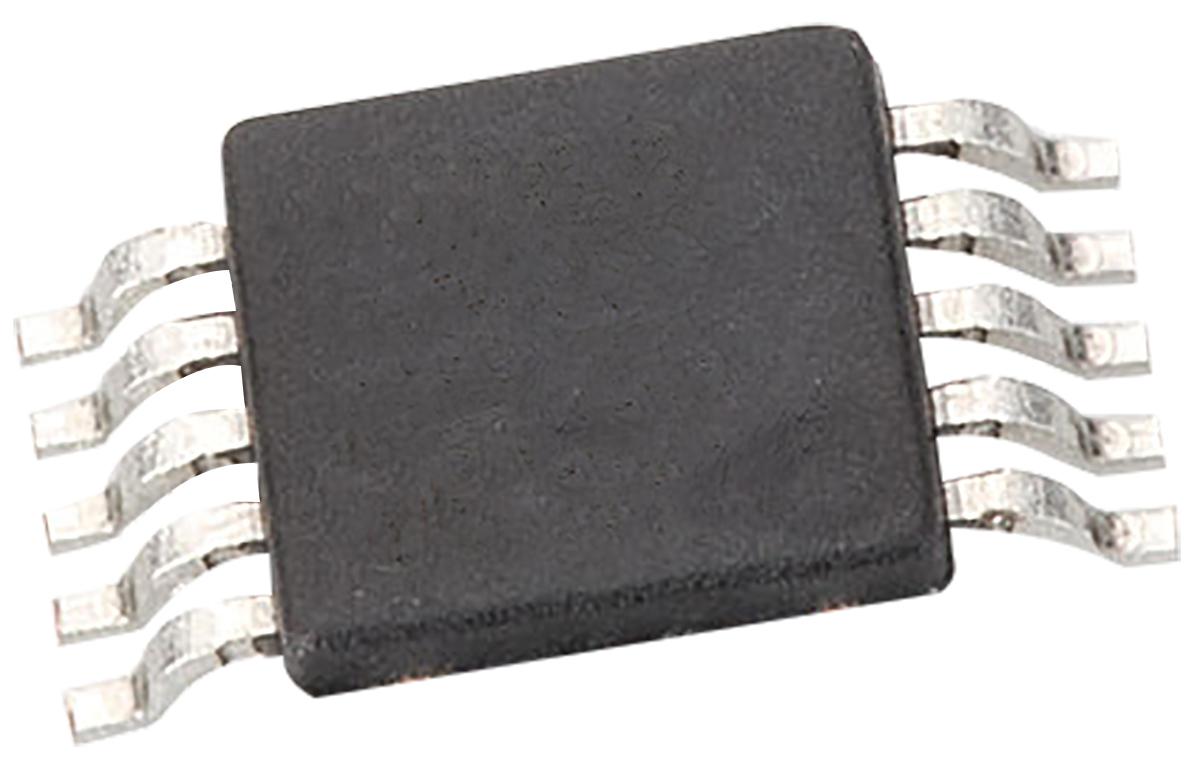

Analog Devices AD5683RBRMZ, 16 bit Serial DAC, 10-Pin MSOP

AD5683RBRMZ Analog Devices , 16 bit Serial DAC, 10-Pin MSOP
AD5683RBRMZ
Analog Devices

Product Information

Voltage Reference:
Internal
Integral Nonlinearity Error:
±2LSB
Dimensions:
3.1 x 3.1 x 0.95mm
Mounting Type:
Surface Mount
Number of DAC Channels:
1
Power Supply Type:
Single
Maximum Settling Time:
7µs
Digital Interface Type:
Serial (SPI)
Typical Single Supply Voltage:
2.7 to 5.5 V
Full Scale Error:
±0.075%FSR
Package Type:
MSOP
Architecture:
Resistor String
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
105 °C
Resolution:
16 bit
Pin Count:
10
RoHs Compliant
Checking for live stock

This is 16 bit Serial DAC 10-Pin MSOP manufactured by Analog Devices. The manufacturer part number is AD5683RBRMZ. The product has internal voltage reference. Its integral nonlinearity error is ±2lsb . The given dimensions of the product include 3.1 x 3.1 x 0.95mm. The product is available in surface mount configuration. Additionally, it includes 1 standard DAC channels . It is a type of single power supply. The product has a maximum 7µs setting time . Additionally, the product has a/an serial (spi) type digital interface . It has a typical single supply voltage of 2.7 to 5.5 v. It has a full scale error of ±0.075%fsr . The package is a sort of msop. The product has been designed as resistor string. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of 105 °c. Features 16 bit resolution. It contains 10 pins.

pdf icon
AD5683R/AD5682R/AD5681R/AD5683, Tiny 16-/14-/12-Bit SPI nanoDAC+, with 2 (16-Bit) LSB INL and 2ppm/C Reference(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
