Name: AD5647RBRMZ, Analog Devices
Brand: Analog Devices
SKU: ET13948514
Price: 8.55 GBP
Availability: PreOrder

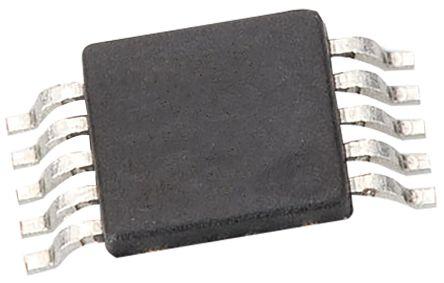

AD5647RBRMZ Analog Devices , 2-channel 14 bit Serial DAC, 285ksps, 10-Pin MSOP

(0)

Product Information

Conversion Rate:

285ksps

Integral Nonlinearity Error:

±4LSB

Dimensions:

3 x 3 x 0.85mm

Mounting Type:

Surface Mount

Number of DAC Channels:

Power Supply Type:

Single

Minimum Operating Temperature:

-40 °C

Maximum Settling Time:

5µs

Digital Interface Type:

Serial (I2C)

Typical Single Supply Voltage:

3.3 V, 5 V

Full Scale Error:

±1%FSR

Package Type:

MSOP

Checking for live stock

This is 2-channel 14 bit Serial DAC 285ksps 10-Pin MSOP manufactured by Analog Devices. The manufacturer part number is AD5647RBRMZ. Its conversion rate is 285ksps . Its integral nonlinearity error is ±4lsb . The given dimensions of the product include 3 x 3 x 0.85mm. The product is available in surface mount configuration. Additionally, it includes 2 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 5µs setting time . Additionally, the product has a/an serial (i2c) type digital interface . It has a typical single supply voltage of 3.3 v, 5 v. It has a full scale error of ±1%fsr . The package is a sort of msop. The product has been designed as resistor string. It has unipolar polarity . The product has external, internal voltage reference. It has a maximum operating temperature of 105 °c. Features 14 bit resolution. It contains 10 pins.

AD5627R/AD5647R/AD5667R, AD5627/AD5667 Dual, 12-/14-/16-Bit nanoDACs with 5 ppm/°C On-Chip Reference, I2C Interface Data Sheet(Technical Reference)

Digital to Analog Converters ICs Solutions Bulletin, Volume 11, Issue 5(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
