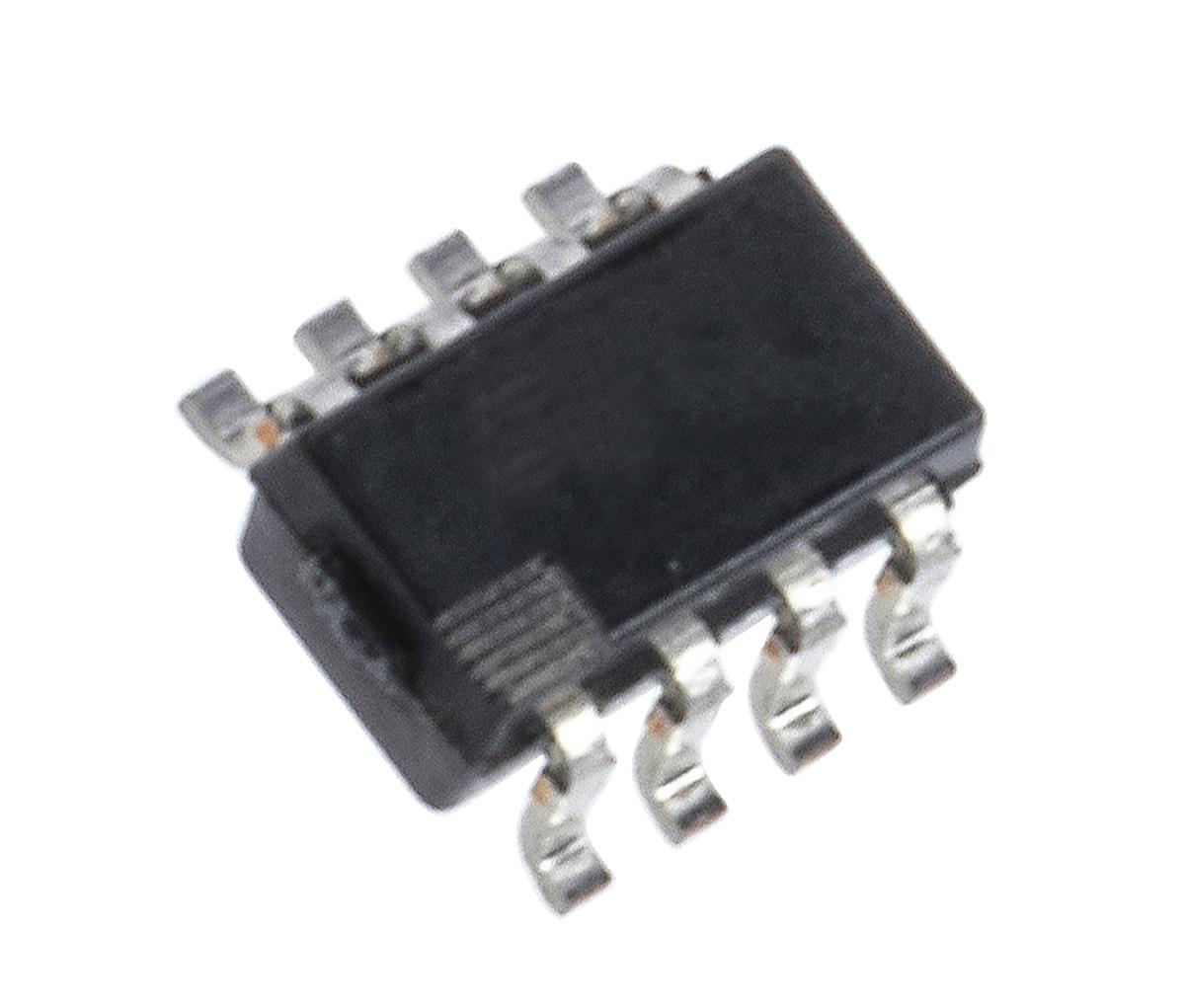

Analog Devices AD5062BRJZ-2500RL7, 16 bit Serial DAC, 8-Pin SOT-23

Enrgtech Part No: ET13857290
|
Manufacturer Part No:
AD5062BRJZ-2500RL7
|
Manufacturer: Analog Devices

AD5062BRJZ-2500RL7 Analog Devices , 16 bit Serial DAC, 8-Pin SOT-23

Product Information

Voltage Reference:

External, Internal

Integral Nonlinearity Error:

±1LSB

Dimensions:

3 x 1.7 x 1.3mm

Mounting Type:

Surface Mount

Number of DAC Channels:

Power Supply Type:

Single

Minimum Operating Temperature:

-40 °C

Maximum Settling Time:

4µs

Digital Interface Type:

Serial (SPI/QSPI/Microwire)

Typical Single Supply Voltage:

2.7 to 5.5 V

Full Scale Error:

±800µV

Package Type:

SOT-23

Checking for live stock

This is 16 bit Serial DAC 8-Pin SOT-23 manufactured by Analog Devices. The manufacturer part number is AD5062BRJZ-2500RL7. The product has external, internal voltage reference. Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 3 x 1.7 x 1.3mm. The product is available in surface mount configuration. Additionally, it includes 1 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 4µs setting time . Additionally, the product has a/an serial (spi/qspi/microwire) type digital interface . It has a typical single supply voltage of 2.7 to 5.5 v. It has a full scale error of ±800µv . The package is a sort of sot-23. The product has been designed as r-2r. It has bipolar, unipolar polarity . It has a maximum operating temperature of 85 °c. Features 16 bit resolution. It contains 8 pins.

AD5062, Fully Accurate 16-Bit V OUT nanoDAC SPI Interface 2.7V to 5.5V, in an SOT-23(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
