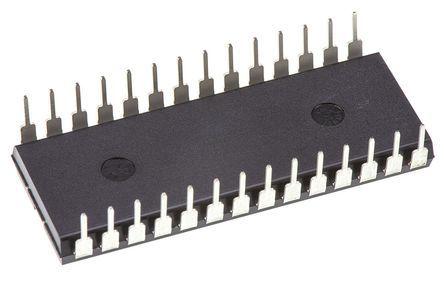

Analog Devices AD569JNZ, 16 bit Parallel DAC, 28-Pin PDIP

AD569JNZ Analog Devices , 16 bit Parallel DAC, 28-Pin PDIP
AD569JNZ
Analog Devices

Product Information

Voltage Reference:
External
Integral Nonlinearity Error:
±0.04%FSR
Dimensions:
39.75 x 14.73 x 4.95mm
Mounting Type:
Through Hole
Number of DAC Channels:
1
Power Supply Type:
Dual
Minimum Operating Temperature:
0 °C
Maximum Settling Time:
6µs
Digital Interface Type:
Parallel
Full Scale Error:
±0.75mV
Package Type:
PDIP
Architecture:
Resistor String
Output Polarity:
Bipolar, Unipolar
Maximum Operating Temperature:
70 °C
Resolution:
16 bit
Pin Count:
28
RoHs Compliant
Checking for live stock

This is 16 bit Parallel DAC 28-Pin PDIP manufactured by Analog Devices. The manufacturer part number is AD569JNZ. The product has external voltage reference. Its integral nonlinearity error is ±0.04%fsr . The given dimensions of the product include 39.75 x 14.73 x 4.95mm. The product is available in through hole configuration. Additionally, it includes 1 standard DAC channels . It is a type of dual power supply. Whereas, the minimum operating temperature of the product is 0 °c. The product has a maximum 6µs setting time . Additionally, the product has a/an parallel type digital interface . It has a full scale error of ±0.75mv . The package is a sort of pdip. The product has been designed as resistor string. It has bipolar, unipolar polarity . It has a maximum operating temperature of 70 °c. Features 16 bit resolution. It contains 28 pins.

pdf icon
AD569 16-Bit Monotonic Voltage Output D/A Converter Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
