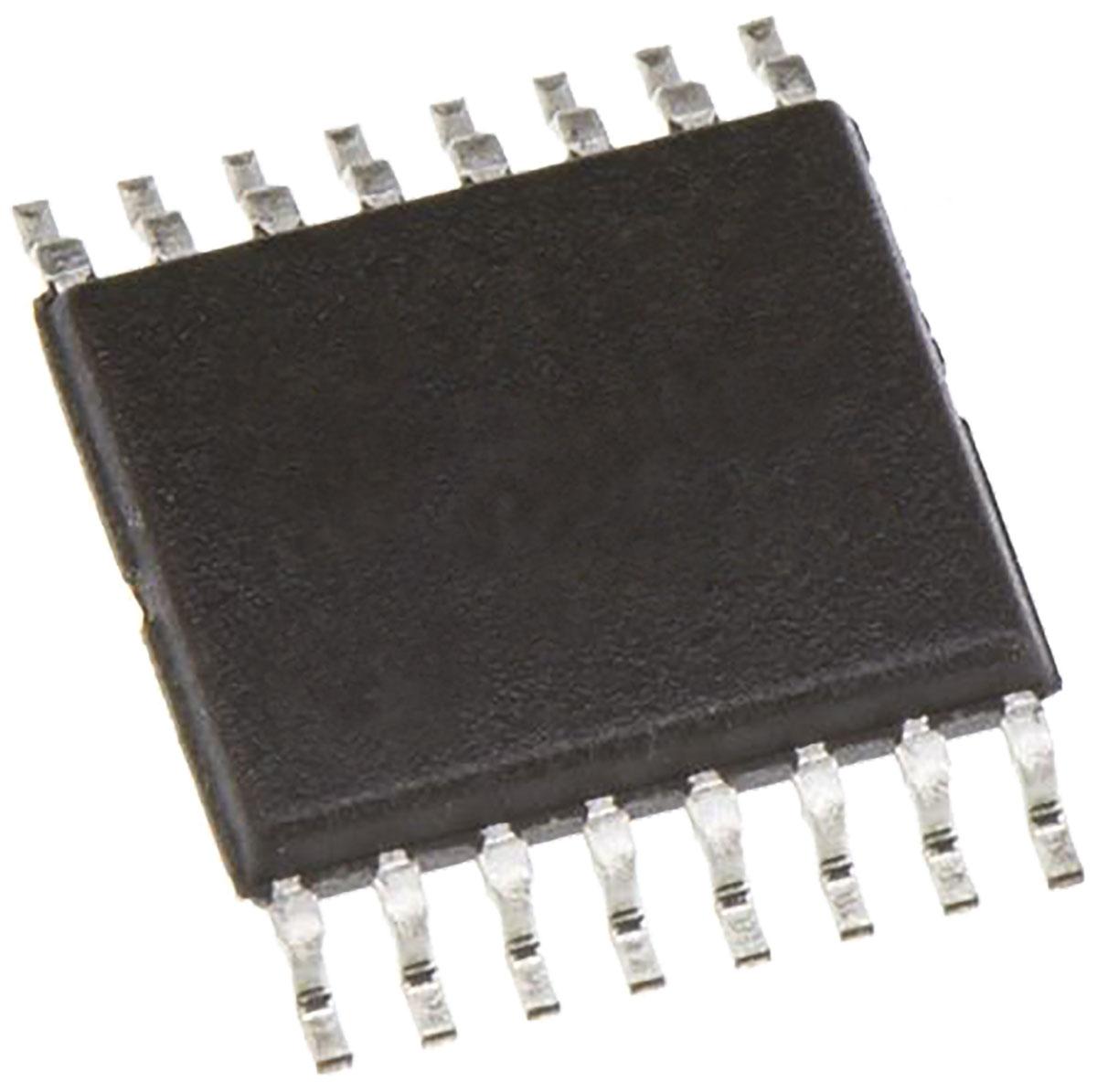

Analog Devices AD5686RBRUZ, 4-channel 16 bit Serial DAC, 16-Pin TSSOP

AD5686RBRUZ Analog Devices , 4-channel 16 bit Serial DAC, 16-Pin TSSOP
AD5686RBRUZ
Analog Devices

Product Information

Voltage Reference:
Internal
Integral Nonlinearity Error:
±2LSB
Dimensions:
5.1 x 4.5 x 1.05mm
Mounting Type:
Surface Mount
Number of DAC Channels:
4
Power Supply Type:
Single
Maximum Settling Time:
8µs
Digital Interface Type:
Serial (SPI)
Typical Single Supply Voltage:
2.7 to 5.5 V
Full Scale Error:
±0.2%FSR
Package Type:
TSSOP
Architecture:
Resistor String
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
105 °C
Resolution:
16 bit
Pin Count:
16
RoHs Compliant
Checking for live stock

This is 4-channel 16 bit Serial DAC 16-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is AD5686RBRUZ. The product has internal voltage reference. Its integral nonlinearity error is ±2lsb . The given dimensions of the product include 5.1 x 4.5 x 1.05mm. The product is available in surface mount configuration. Additionally, it includes 4 standard DAC channels . It is a type of single power supply. The product has a maximum 8µs setting time . Additionally, the product has a/an serial (spi) type digital interface . It has a typical single supply voltage of 2.7 to 5.5 v. It has a full scale error of ±0.2%fsr . The package is a sort of tssop. The product has been designed as resistor string. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of 105 °c. Features 16 bit resolution. It contains 16 pins.

pdf icon
Quad, 16-/14-/12-Bit nanoDAC+ with 2 ppm/°C Reference, SPI Interface(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
AD5686R SPICE Macro Model(Technical Reference)
