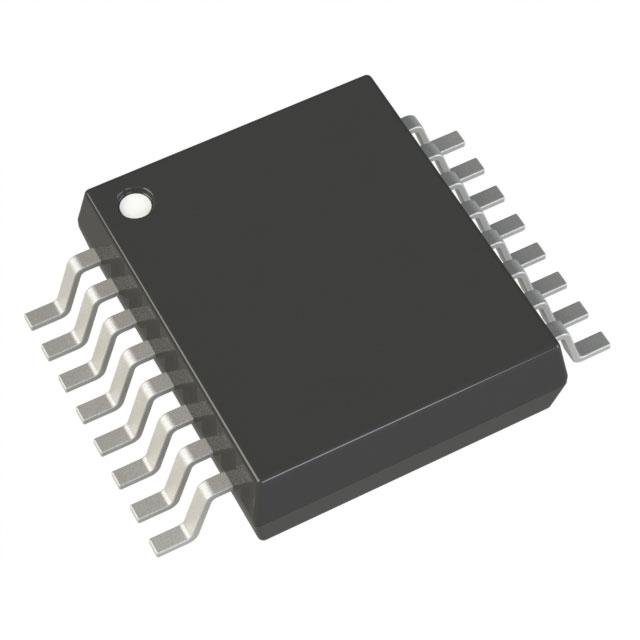

Analog Devices Inc. AD5570BRS-REEL

AD5570BRS-REEL Analog Devices Inc.
Analog Devices Inc.

Product Information

Differential Output:
No
HTSUS:
8542.39.0001
Package / Case:
16-SSOP (0.209", 5.30mm Width)
Operating Temperature:
-40°C ~ 85°C
DigiKey Programmable:
Not Verified
Number of Bits:
16
Number of D/A Converters:
1
Output Type:
Voltage - Buffered
Reference Type:
External
Voltage - Supply, Analog:
±11.4V ~ 16.5V
Settling Time:
16µs
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Architecture:
R-2R
INL/DNL (LSB):
±0.4, ±0.3
Mounting Type:
Surface Mount
Data Interface:
SPI, DSP
Series:
-
Supplier Device Package:
16-SSOP
Voltage - Supply, Digital:
-
Base Product Number:
AD5570
ECCN:
EAR99
Checking for live stock

This is manufactured by Analog Devices Inc.. The manufacturer part number is AD5570BRS-REEL. Differential Output Info: no. It is assigned with possible HTSUS value of 8542.39.0001. Moreover, the product comes in 16-ssop (0.209", 5.30mm width). The product has -40°c ~ 85°c operating temperature range. The product consists of 16 bits. It consists of 1 D/A converters. Furthermore, it has avoltage - buffered output. The product has a reference of external type. The analogue voltage supply of the product is ±11.4v ~ 16.5v. Features 16µs settling time. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The product has been designed as r-2r. INL/DNL (LSB) Specifications: ±0.4, ±0.3. The product is available in surface mount configuration. It acts as a spi, dsp data interface. 16-ssop is the supplier device package value. Moreover, it corresponds to ad5570, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Devices 29/Jan/2014(PCN Obsolescence/ EOL)
pdf icon
AD5570(Datasheets)
pdf icon
Tape and Reel Packaging(Other Related Documents)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD5570BRS-REEL on website for other similar products.
We accept all major payment methods for all products including ET14786241. Please check your shopping cart at the time of order.
You can order Analog Devices Inc. brand products with AD5570BRS-REEL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Digital to Analog Converters (DAC) category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices Inc. AD5570BRS-REEL. You can also check on our website or by contacting our customer support team for further order details on Analog Devices Inc. AD5570BRS-REEL.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14786241 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET14786241.
Yes. We ship AD5570BRS-REEL Internationally to many countries around the world.
