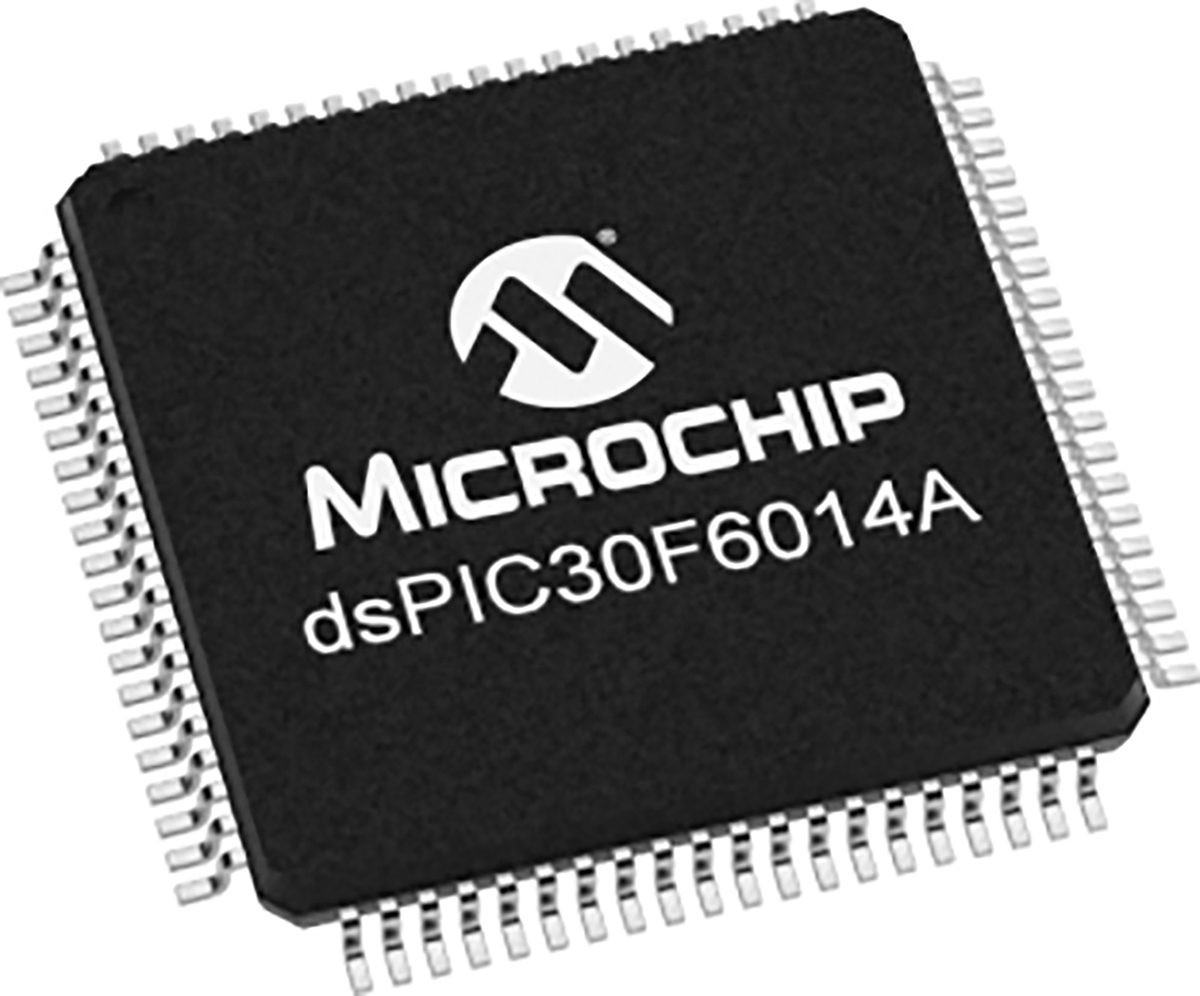

DSPIC30F6014A-20E/PF Microchip DSPIC30F6014A, 16bit Digital Signal Processor 120MHz 144 kB Flash 64-Pin TQFP

DSPIC30F6014A-20E-PF DSPIC30F6014A-20E/PF Microchip DSPIC30F6014A, 16bit Digital Signal Processor 120MHz 144 kB Flash 64-Pin TQFP
Microchip

Product Information

Dimensions:
10 x 10 x 1.05mm
Number of I2C Channels:
1
Width:
10mm
Numeric and Arithmetic Format:
ALU
Program Memory Size:
144 kB
Number of PWM Units:
1
RAM Size:
8 kB
ADC Channels:
16
Number of Timers:
2
Data Bus Width:
16bit
Instruction Set Architecture:
Harvard
Program Memory Type:
Flash
Package Type:
TQFP
Maximum Frequency:
120MHz
Maximum Operating Temperature:
+125 °C
Number of UART Channels:
2
PWM Resolution:
16bit
Minimum Operating Temperature:
-40 °C
ADC Resolution:
12bit
Timer Resolution:
16 bit, 32bit
Timers:
2 x 32-bit, 5 x 16-bit
Device Million Instructions per Second:
30MIPS
Number of ADC Units:
1
Pin Count:
64
Pulse Width Modulation:
1 (8 x 16 bit)
Mounting Type:
Surface Mount
Series:
DSPIC30F6014A
PWM Channels:
8
Length:
10mm
Height:
1.05mm
ADCs:
1 (16 x 12 bit)
Number of CAN Channels:
2
Number of SPI Channels:
2
RoHs Compliant
Checking for live stock

This is DSPIC30F6014A 16bit Digital Signal Processor 120MHz 144 kB Flash 64-Pin TQFP manufactured by Microchip. The manufacturer part number is DSPIC30F6014A-20E/PF. The given dimensions of the product include 10 x 10 x 1.05mm. Moreover, it comprises 1 I2C channels. Furthermore, the product is 10mm wide. It has a/an alu numeric and arithmetic format . In addition, 144 kb is the program memory size. Furthermore, it is composed of 1 PWM units. The product has typical 8 kb RAM size. Additionally, it is composed of 16 ADC channels. It comprises 2 timers. Moreover, the data bus width includes 16bit. The instruction set has harvard architecture. It is a flash program memory type. The package is a sort of tqfp. It features 120mhz of maximum frequency. It has a maximum operating temperature of +125 °c. It is also composed of 2 UART channels. Moreover, the product is created with 16bit PMW resolution . Whereas, the minimum operating temperature of the product is -40 °c. The ADC has 12bit resolution. The timer has 16 bit, 32bit resolution. Timers options include 2 x 32-bit, 5 x 16-bit. It has a 30mips device million instructions per second . It contains 1 ADC units. It contains 64 pins. The product carries 1 (8 x 16 bit) of pulse width modulation. The product is available in surface mount configuration. The product dspic30f6014a, is a highly preferred choice for users. It includes 8 PWM channels . Its accurate length is 10mm. In addition, the height is 1.05mm. The ADCs included 1 (16 x 12 bit). Moreover, it consists of 2 CAN channels. Furthermore, it is composed of 2 SPI channels.
