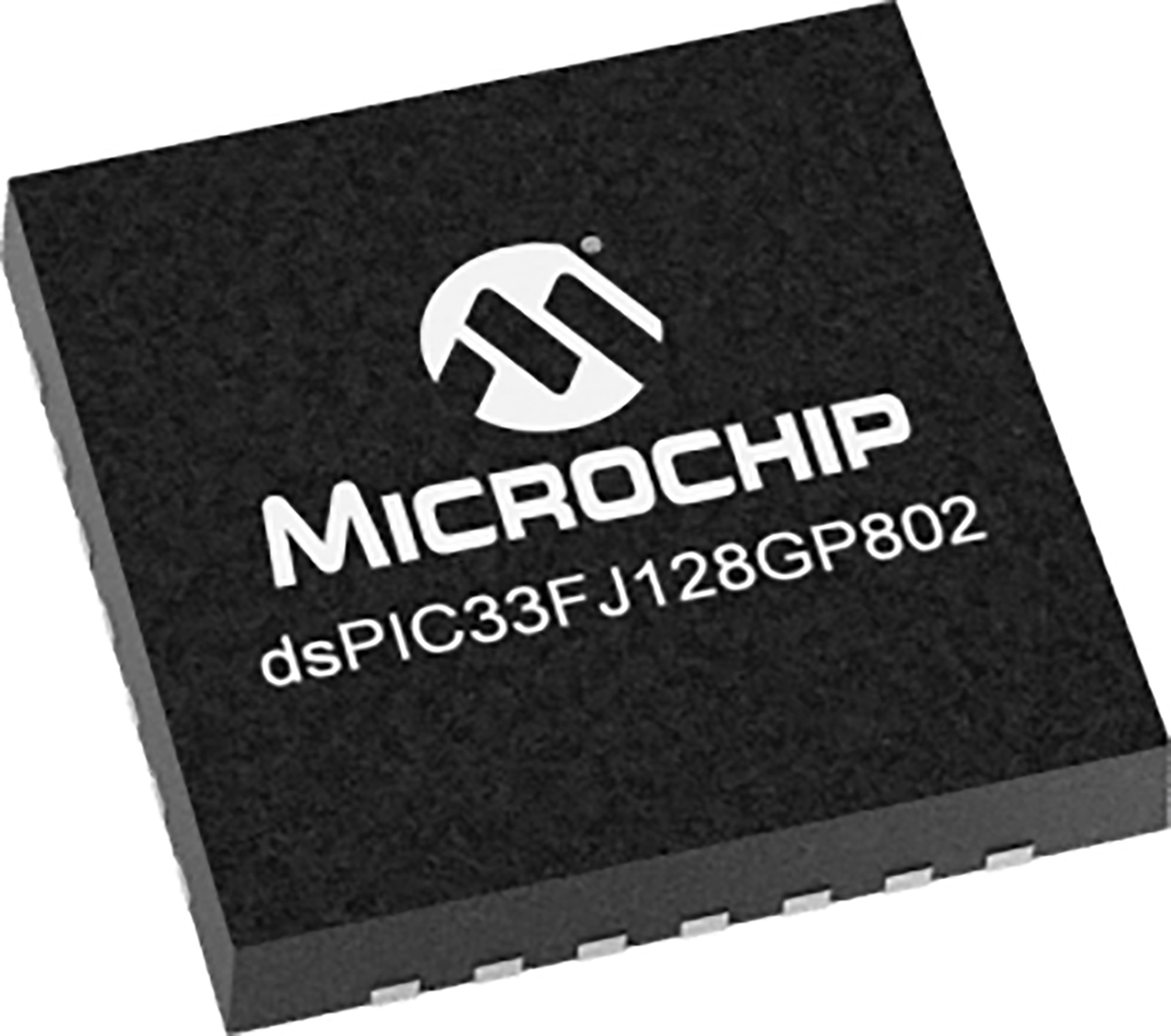

DSPIC33FJ128GP802-E/MM Microchip DSPIC, 16bit Digital Signal Processor 40MHz 128 kB Flash 28-Pin QFN

DSPIC33FJ128GP802-E-MM DSPIC33FJ128GP802-E/MM Microchip DSPIC, 16bit Digital Signal Processor 40MHz 128 kB Flash 28-Pin QFN
Microchip

Product Information

Dimensions:
6 x 6 x 0.95mm
Number of I2C Channels:
1
Width:
6mm
Numeric and Arithmetic Format:
ALU
Program Memory Size:
128 kB
Number of PWM Units:
1
RAM Size:
16 kB
Automotive Standard:
AEC-Q100
ADC Channels:
10
Number of Timers:
2
Data Bus Width:
16bit
Instruction Set Architecture:
Modified Harvard
Program Memory Type:
Flash
Package Type:
QFN
Maximum Frequency:
40MHz
Maximum Operating Temperature:
+125 °C
Number of UART Channels:
2
Minimum Operating Temperature:
-40 °C
ADC Resolution:
12bit
Timer Resolution:
16 bit, 32bit
Timers:
1 (2 x 32 bit), 1 (5 x 16 bit)
Device Million Instructions per Second:
40MIPS
Number of ADC Units:
1
Pin Count:
28
Pulse Width Modulation:
1 (4 Channel)
Mounting Type:
Surface Mount
Series:
DSPIC
PWM Channels:
4
Length:
6mm
Height:
0.95mm
Typical Operating Supply Voltage:
3.6 V
ADCs:
1 (10 x 12 bit)
Number of CAN Channels:
1
Number of SPI Channels:
2
RoHs Compliant
Checking for live stock

This is DSPIC 16bit Digital Signal Processor 40MHz 128 kB Flash 28-Pin QFN manufactured by Microchip. The manufacturer part number is DSPIC33FJ128GP802-E/MM. The given dimensions of the product include 6 x 6 x 0.95mm. Moreover, it comprises 1 I2C channels. Furthermore, the product is 6mm wide. It has a/an alu numeric and arithmetic format . In addition, 128 kb is the program memory size. Furthermore, it is composed of 1 PWM units. The product has typical 16 kb RAM size. The product complies with automotive standard - aec-q100. Additionally, it is composed of 10 ADC channels. It comprises 2 timers. Moreover, the data bus width includes 16bit. The instruction set has modified harvard architecture. It is a flash program memory type. The package is a sort of qfn. It features 40mhz of maximum frequency. It has a maximum operating temperature of +125 °c. It is also composed of 2 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. The ADC has 12bit resolution. The timer has 16 bit, 32bit resolution. Timers options include 1 (2 x 32 bit), 1 (5 x 16 bit). It has a 40mips device million instructions per second . It contains 1 ADC units. It contains 28 pins. The product carries 1 (4 channel) of pulse width modulation. The product is available in surface mount configuration. The product dspic, is a highly preferred choice for users. It includes 4 PWM channels . Its accurate length is 6mm. In addition, the height is 0.95mm. It has 3.6 v of typical operating supply voltage. The ADCs included 1 (10 x 12 bit). Moreover, it consists of 1 CAN channels. Furthermore, it is composed of 2 SPI channels.
