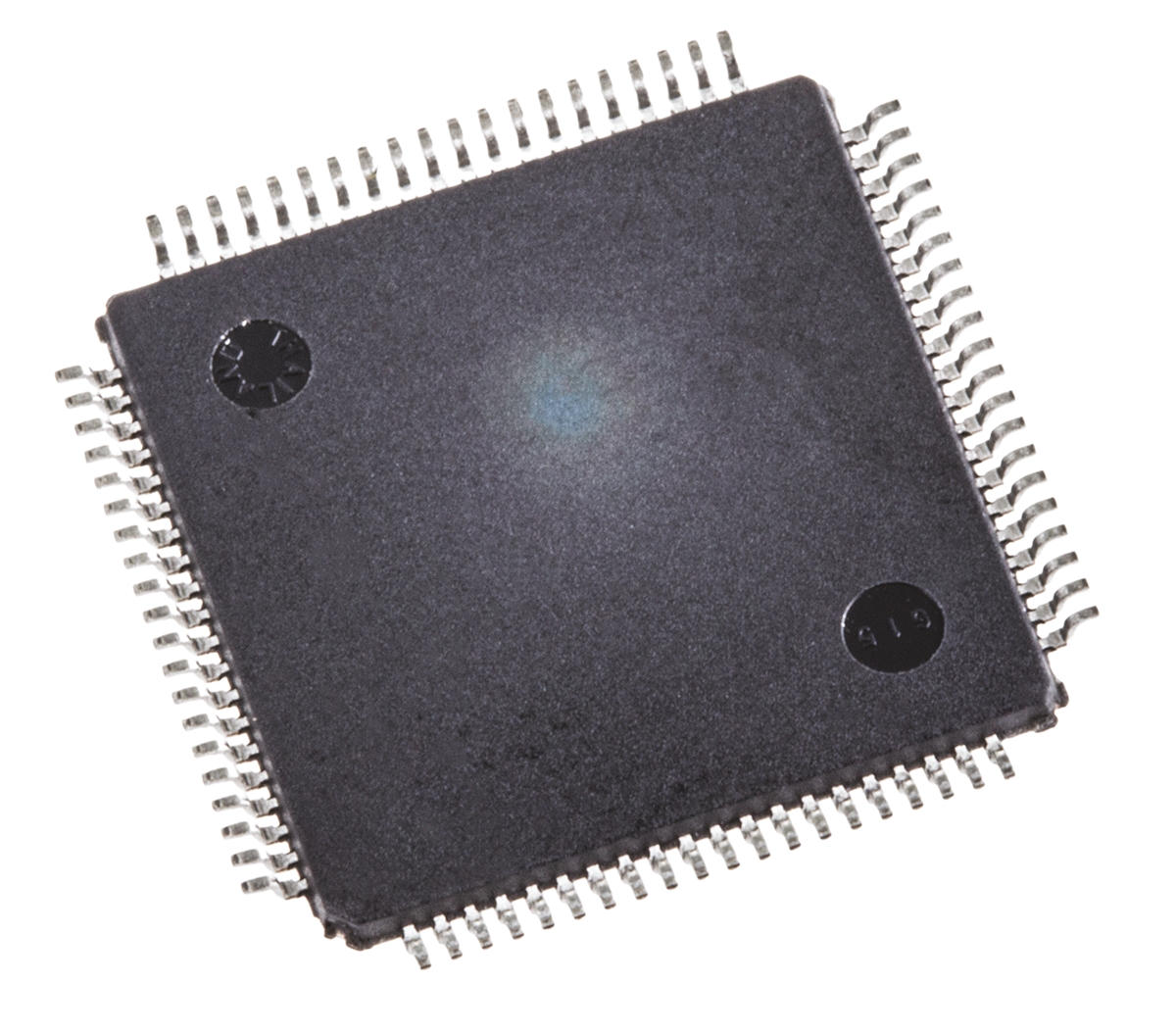

Microchip dsPIC30F5013-30I/PT dsPIC30F, 16bit DSP 30MIPS 1.024 kB, 66 kB Flash 80-Pin TQFP

dsPIC30F5013-30I-PT Microchip dsPIC30F5013-30I/PT dsPIC30F, 16bit DSP 30MIPS 1.024 kB, 66 kB Flash 80-Pin TQFP
dsPIC30F5013-30I/PT
Microchip

Product Information

Dimensions:
12 x 12 x 1.05mm
Number of I2C Channels:
1
Number of USART Channels:
0
USB Channels:
0
Width:
12mm
Program Memory Size:
1.024 kB, 66 kB
Number of PWM Units:
5
RAM Size:
4.096 kB
ADC Channels:
16
Number of Timers:
5
Data Bus Width:
16bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
TQFP
Maximum Frequency:
30MIPS
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
2
PWM Resolution:
16bit
Minimum Operating Temperature:
-40 °C
ADC Resolution:
12bit
Timer Resolution:
16bit
Timers:
5 x 16 bit
Device Million Instructions per Second:
30MIPS
Number of ADC Units:
1
Pin Count:
80
Pulse Width Modulation:
5(16 bit)
Mounting Type:
Surface Mount
Series:
dsPIC30F
Length:
12mm
Number of Ethernet Channels:
0
Height:
1.05mm
Typical Operating Supply Voltage:
2.5 to 5.5 V
ADCs:
16 x 12 bit
Number of CAN Channels:
2
Number of SPI Channels:
2
RoHs Compliant
Checking for live stock

This is dsPIC30F 16bit DSP 30MIPS 1.024 kB 66 kB Flash 80-Pin TQFP manufactured by Microchip. The manufacturer part number is dsPIC30F5013-30I/PT. The given dimensions of the product include 12 x 12 x 1.05mm. Moreover, it comprises 1 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 12mm wide. In addition, 1.024 kb, 66 kb is the program memory size. Furthermore, it is composed of 5 PWM units. The product has typical 4.096 kb RAM size. Additionally, it is composed of 16 ADC channels. It comprises 5 timers. Moreover, the data bus width includes 16bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of tqfp. It features 30mips of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 2 UART channels. Moreover, the product is created with 16bit PMW resolution . Whereas, the minimum operating temperature of the product is -40 °c. The ADC has 12bit resolution. The timer has 16bit resolution. Timers options include 5 x 16 bit. It has a 30mips device million instructions per second . It contains 1 ADC units. It contains 80 pins. The product carries 5(16 bit) of pulse width modulation. The product is available in surface mount configuration. The product dspic30f, is a highly preferred choice for users. Its accurate length is 12mm. It contains 0 dedicated ethernet channels . In addition, the height is 1.05mm. It has 2.5 to 5.5 v of typical operating supply voltage. The ADCs included 16 x 12 bit. Moreover, it consists of 2 CAN channels. Furthermore, it is composed of 2 SPI channels.

pdf icon
Datasheet(Technical Reference)
pdf icon
dsPIC30F5011/5013 Data Sheet(Technical Reference)
