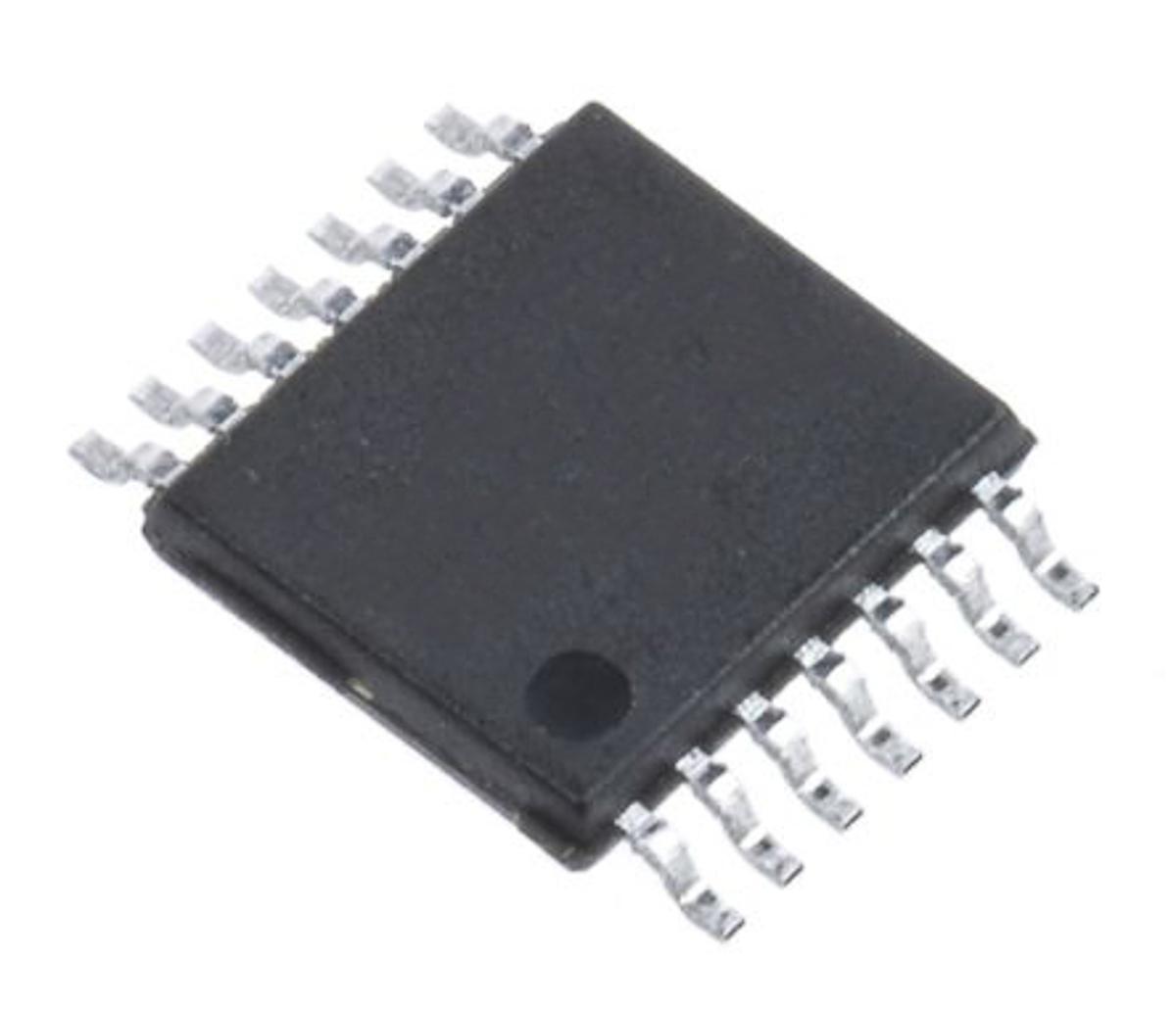

8-Bit SPI Dig POT

AD5260BRUZ200 8-Bit SPI Dig POT
Analog Devices

Product Information

Number of Positions:
256
Typical Dual Supply Voltage:
±5.5V
Maximum Operating Temperature:
+85 °C
Dimensions:
5.1 x 4.5 x 1.05mm
Mounting Type:
Surface Mount
Power Supply Type:
Dual, Single
Resistance Value:
200kΩ
Typical Single Supply Voltage:
5 to 15 V
Height:
1.05mm
Width:
4.5mm
Length:
5.1mm
Package Type:
TSSOP
Minimum Operating Temperature:
-40 °C
Control Interface:
Serial-3 Wire
Taper Type:
Linear
Pin Count:
14
Number of Pots per Package:
1
RoHs Compliant
Checking for live stock

This is 8-Bit SPI Dig POT manufactured by Analog Devices. The manufacturer part number is AD5260BRUZ200. The product carries possible position value of 256. While ±5.5v is the typical dual supply voltage. It has a maximum operating temperature of +85 °c. The given dimensions of the product include 5.1 x 4.5 x 1.05mm. The product is available in surface mount configuration. It is a type of dual, single power supply. Its resistance value is 200kω . It has a typical single supply voltage of 5 to 15 v. In addition, the height is 1.05mm. Furthermore, the product is 4.5mm wide. Its accurate length is 5.1mm. The package is a sort of tssop. Whereas, the minimum operating temperature of the product is -40 °c. It incorporates a serial-3 wire control interface. In addition, it has a linear type taper . It contains 14 pins. It contains 1 pots per package .

pdf icon
Datasheet AD5260BRUZ200(Technical Reference)
