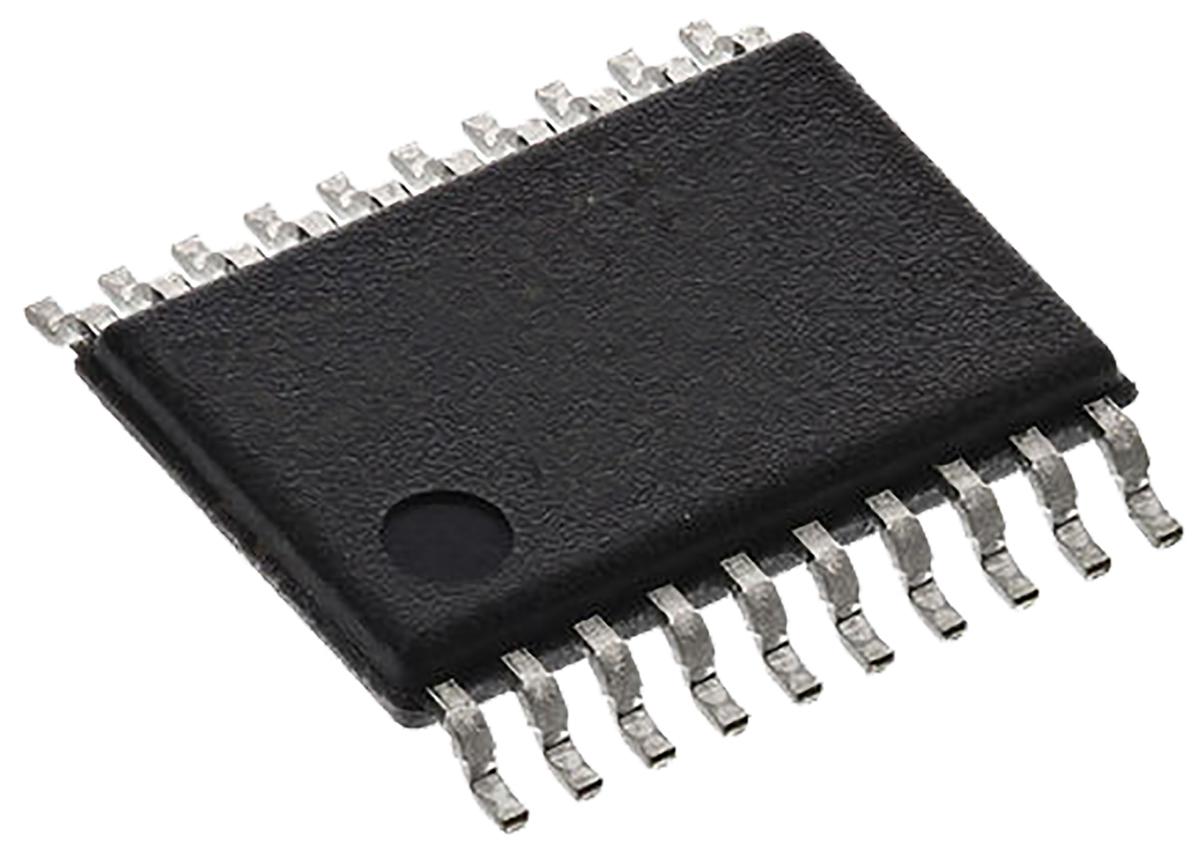

AD5144ABRUZ100, Digital Potentiometer 100kΩ 256-Position Linear 4-channel Serial-I2C 20-Pin TSSOP

AD5144ABRUZ100 , Digital Potentiometer 100kΩ 256-Position Linear 4-channel Serial-I2C 20-Pin TSSOP
AD5144ABRUZ100
Analog Devices

Product Information

Number of Positions:
256
Typical Dual Supply Voltage:
±2.25 → ±2.75V
Maximum Operating Temperature:
+125 °C
Dimensions:
6.6 x 4.5 x 1.05mm
Mounting Type:
Surface Mount
Power Supply Type:
Dual, Single
Resistance Value:
100kΩ
Typical Single Supply Voltage:
2.3 to 5.5 V
Height:
1.05mm
Memory Type:
Non-Volatile
Width:
4.5mm
Length:
6.6mm
Package Type:
TSSOP
Minimum Operating Temperature:
-40 °C
Control Interface:
Serial-I2C
Taper Type:
Linear
Pin Count:
20
Number of Pots per Package:
4
RoHs Compliant
Checking for live stock

This is Digital Potentiometer 100kΩ 256-Position Linear 4-channel Serial-I2C 20-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is AD5144ABRUZ100. The product carries possible position value of 256. While ±2.25 → ±2.75v is the typical dual supply voltage. It has a maximum operating temperature of +125 °c. The given dimensions of the product include 6.6 x 4.5 x 1.05mm. The product is available in surface mount configuration. It is a type of dual, single power supply. Its resistance value is 100kω . It has a typical single supply voltage of 2.3 to 5.5 v. In addition, the height is 1.05mm. It is a type of non-volatile memory type. Furthermore, the product is 4.5mm wide. Its accurate length is 6.6mm. The package is a sort of tssop. Whereas, the minimum operating temperature of the product is -40 °c. It incorporates a serial-i2c control interface. In addition, it has a linear type taper . It contains 20 pins. It contains 4 pots per package .

pdf icon
AD5124/AD5144/AD5144A, Quad Channel, 128-/256-Position, I2C/SPI, Non-volatile Digital Potentiometer Data Sheet(Technical Reference)
