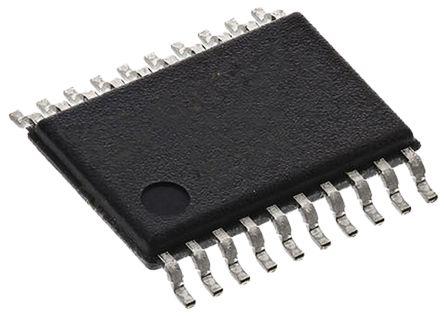

DS1844E-100+, Digital Potentiometer 100kΩ 64-Position Linear 4-channel Serial-2 Wire, Serial-5 Wire 20-Pin TSSOP

DS1844E-100- DS1844E-100+, Digital Potentiometer 100kΩ 64-Position Linear 4-channel Serial-2 Wire, Serial-5 Wire 20-Pin TSSOP
DS1844E-100+
Maxim

Product Information

Number of Positions:
64
Maximum Operating Temperature:
+85 °C
Dimensions:
6.6 x 4.5 x 0.95mm
Mounting Type:
Surface Mount
Power Supply Type:
Single
Resistance Value:
100kΩ
Typical Single Supply Voltage:
2.7 → 5.5 V
Height:
0.95mm
Memory Type:
Volatile
Width:
4.5mm
Length:
6.6mm
Package Type:
TSSOP
Minimum Operating Temperature:
-40 °C
Control Interface:
Serial-2 Wire, Serial-5 Wire
Taper Type:
Linear
Pin Count:
20
Number of Pots per Package:
4
RoHs Compliant
Checking for live stock

This is Digital Potentiometer 100kΩ 64-Position Linear 4-channel Serial-2 Wire Serial-5 Wire 20-Pin TSSOP manufactured by Maxim. The manufacturer part number is DS1844E-100+. The product carries possible position value of 64. It has a maximum operating temperature of +85 °c. The given dimensions of the product include 6.6 x 4.5 x 0.95mm. The product is available in surface mount configuration. It is a type of single power supply. Its resistance value is 100kω . It has a typical single supply voltage of 2.7 → 5.5 v. In addition, the height is 0.95mm. It is a type of volatile memory type. Furthermore, the product is 4.5mm wide. Its accurate length is 6.6mm. The package is a sort of tssop. Whereas, the minimum operating temperature of the product is -40 °c. It incorporates a serial-2 wire, serial-5 wire control interface. In addition, it has a linear type taper . It contains 20 pins. It contains 4 pots per package .

pdf icon
DS1844, Quad Digital Potentiometer Data Sheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search DS1844E-100+ on website for other similar products.
We accept all major payment methods for all products including ET13839816. Please check your shopping cart at the time of order.
You can order Maxim brand products with DS1844E-100+ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Digital Potentiometers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of DS1844E-100+, Digital Potentiometer 100kΩ 64-Position Linear 4-channel Serial-2 Wire, Serial-5 Wire 20-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on DS1844E-100+, Digital Potentiometer 100kΩ 64-Position Linear 4-channel Serial-2 Wire, Serial-5 Wire 20-Pin TSSOP.
