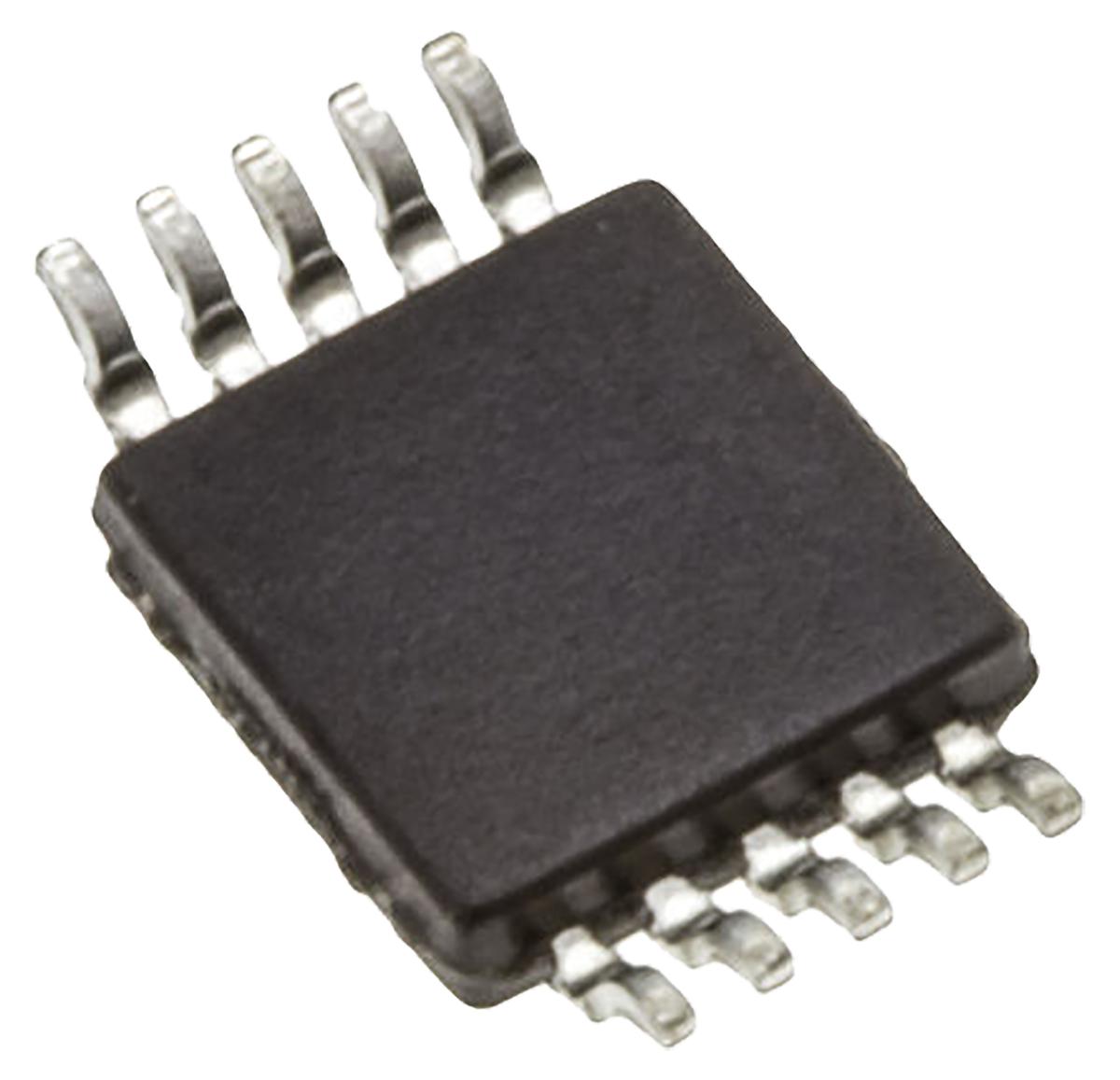

AD5272BRMZ-20, Digital Potentiometer 20kΩ 1024-Position Serial-3 Wire, Serial-I2C 10-Pin MSOP

AD5272BRMZ-20 , Digital Potentiometer 20kΩ 1024-Position Serial-3 Wire, Serial-I2C 10-Pin MSOP
AD5272BRMZ-20
Analog Devices

Product Information

Number of Positions:
1024
Typical Dual Supply Voltage:
±2.5 → ±2.75V
Dimensions:
3.1 x 3.1 x 0.95mm
Mounting Type:
Surface Mount
Power Supply Type:
Dual, Single
Resistance Value:
20kΩ
Typical Single Supply Voltage:
2.7 to 5.5 V
Height:
0.95mm
Memory Type:
Non-Volatile
Width:
3.1mm
Length:
3.1mm
Package Type:
MSOP
Minimum Operating Temperature:
-40 °C
Control Interface:
Serial-3 Wire, Serial-I2C
Maximum Operating Temperature:
+125 °C
Pin Count:
10
Number of Pots per Package:
1
RoHs Compliant
Checking for live stock

This is Digital Potentiometer 20kΩ 1024-Position Serial-3 Wire Serial-I2C 10-Pin MSOP manufactured by Analog Devices. The manufacturer part number is AD5272BRMZ-20. The product carries possible position value of 1024. While ±2.5 → ±2.75v is the typical dual supply voltage. The given dimensions of the product include 3.1 x 3.1 x 0.95mm. The product is available in surface mount configuration. It is a type of dual, single power supply. Its resistance value is 20kω . It has a typical single supply voltage of 2.7 to 5.5 v. In addition, the height is 0.95mm. It is a type of non-volatile memory type. Furthermore, the product is 3.1mm wide. Its accurate length is 3.1mm. The package is a sort of msop. Whereas, the minimum operating temperature of the product is -40 °c. It incorporates a serial-3 wire, serial-i2c control interface. It has a maximum operating temperature of +125 °c. It contains 10 pins. It contains 1 pots per package .

pdf icon
1024-/256-Position, 1% Resistor Tolerance Error, I2C Interface and 50-TP Memory Digital Rheostat(Technical Reference)
