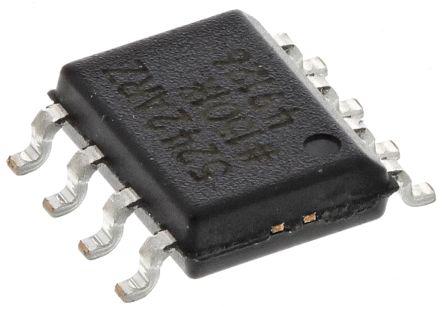

Analog Devices ADUM5242ARZ PCB SMT, 2-channel Digital Isolator 1MBps, 2.5 kV, 8-Pin SOIC

ADUM5242ARZ Analog Devices  PCB SMT, 2-channel Digital Isolator 1MBps, 2.5 kV, 8-Pin SOIC
ADUM5242ARZ
Analog Devices

Product Information

Maximum Forward Voltage:
5.5V
Isolation Voltage:
2500 V
Maximum Data Rate:
1Mbps
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+105°C
Length:
5mm
Width:
4mm
Depth:
1.5mm
Package Type:
SOIC
Minimum Operating Temperature:
-40°C
Number of Channels:
2
Number of Pins:
8
Rise Time:
2.5ns
Maximum Input Current:
10 μA
RoHs Compliant
Checking for live stock

This is PCB SMT 2-channel Digital Isolator 1MBps 2.5 kV 8-Pin SOIC manufactured by Analog Devices. The manufacturer part number is ADUM5242ARZ. It also carries 5.5v of maximum forward voltage. It has 2500 v isolation voltage. Furthermore, it has a maximum data rate of 1mbps . The product is available in surface mount configuration. It has a maximum operating temperature of +105°c. Its accurate length is 5mm. Furthermore, the product is 4mm wide. The product comes in 1.5mm depth. The package is a sort of soic. Whereas, the minimum operating temperature of the product is -40°c. It is supplied with 2 channels. It is comprised of 8 pins. Whereas, the rise time is 2.5ns . While its maximum input current includes 10 μa.
