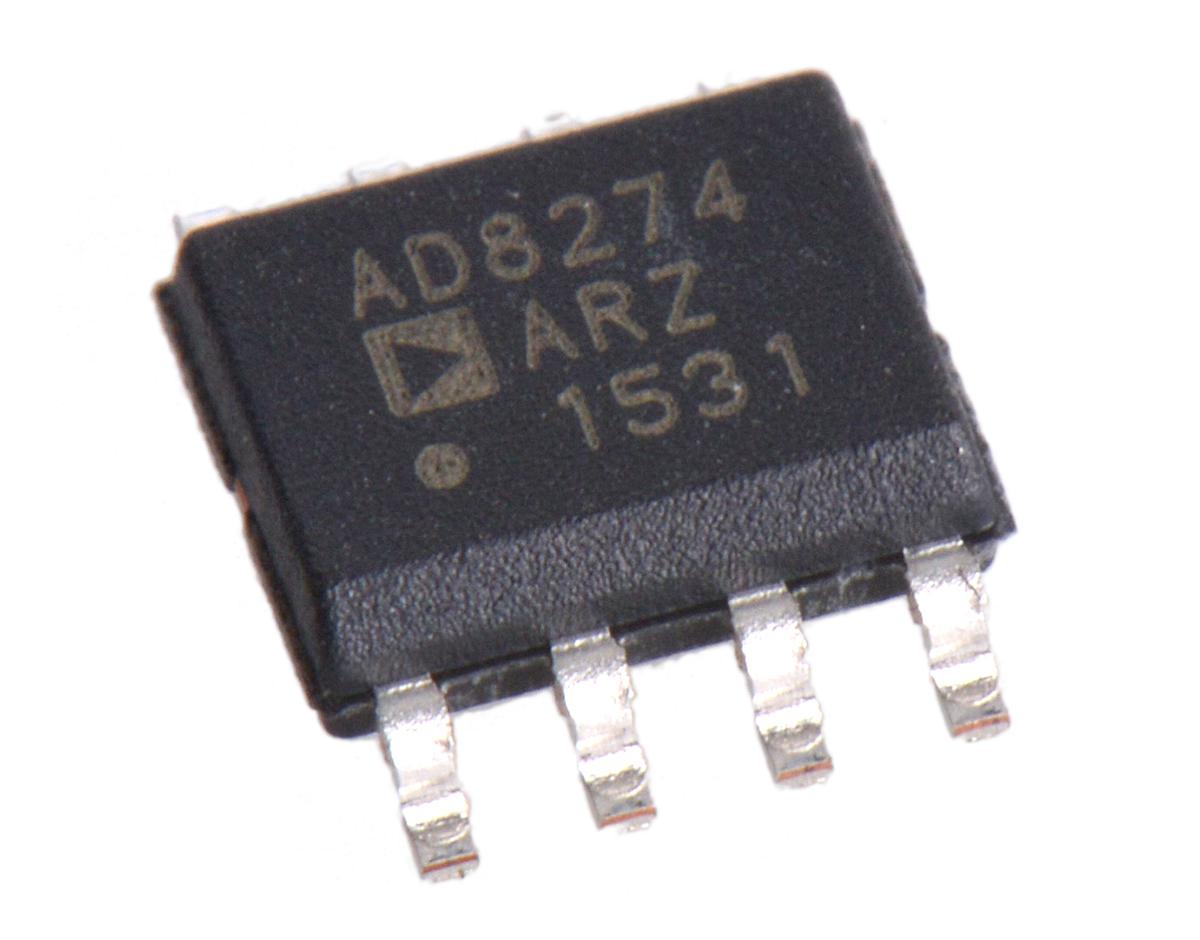

Analog Devices AD8274ARZ, Differential Amplifier 20MHz 8-Pin SOIC

AD8274ARZ Analog Devices , Differential Amplifier 20MHz 8-Pin SOIC
AD8274ARZ
Analog Devices

Product Information

Minimum CMRR:
83dB
Maximum Input Offset Voltage:
1100µV
Typical Dual Supply Voltage:
±2.5 → ±18V
Typical Gain Bandwidth Product:
20MHz
Dimensions:
5 x 4 x 1.5mm
Mounting Type:
Surface Mount
Power Supply Type:
Dual
Number of Channels per Chip:
1
Maximum Supply Current:
2.6 mA
Height:
1.5mm
Width:
4mm
Length:
5mm
Package Type:
SOIC
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+85 °C
Pin Count:
8
RoHs Compliant
Checking for live stock

This is Differential Amplifier 20MHz 8-Pin SOIC manufactured by Analog Devices. The manufacturer part number is AD8274ARZ. It is designed with a minimum 83db CMRR . It has a maximum 1100µv input offset voltage . While ±2.5 → ±18v is the typical dual supply voltage. Features 20mhz typical gain bandwidth. The given dimensions of the product include 5 x 4 x 1.5mm. The product is available in surface mount configuration. It is a type of dual power supply. It comprises 1 channels per chip. Moreover, it has a maximum 2.6 ma supply current . In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 5mm. The package is a sort of soic. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c. It contains 8 pins.

pdf icon
ad8274, Very Low Distortion Precision Difference Amplifier, Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
