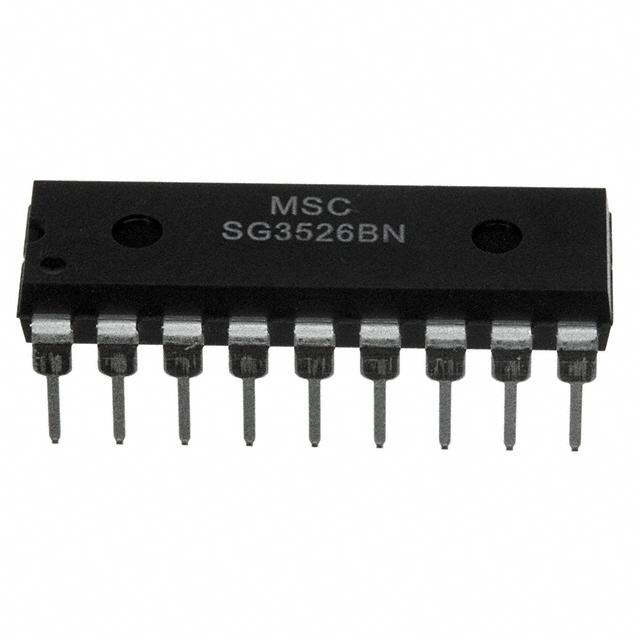

Microchip Technology SG3526BN

SG3526BN Microchip Technology
Microchip Technology

Product Information

Synchronous Rectifier:
Yes
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
18-PDIP
Operating Temperature:
0°C ~ 70°C (TA)
Voltage - Supply (Vcc/Vdd):
8V ~ 35V
Package / Case:
18-DIP (0.300", 7.62mm)
Function:
Step-Down, Step-Up/Step-Down
Frequency - Switching:
1Hz ~ 500kHz
REACH Status:
REACH Unaffected
Output Type:
Transistor Driver
edacadModel:
SG3526BN Models
edacadModelUrl:
/en/models/711347
Output Phases:
1
Topology:
Buck, Flyback
Control Features:
Dead Time Control, Enable, Frequency Control, Reset, Soft Start
Package:
Tube
Clock Sync:
No
Duty Cycle (Max):
49%
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Series:
-
Serial Interfaces:
-
Base Product Number:
SG3526
Output Configuration:
Positive
Number of Outputs:
2
ECCN:
EAR99
Checking for live stock

This is manufactured by Microchip Technology. The manufacturer part number is SG3526BN. This also includes yes synchronous rectifier. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. 18-pdip is the supplier device package value. The product has 0°c ~ 70°c (ta) operating temperature range. The supply voltage of a bespoke product includes 8v ~ 35v. Moreover, the product comes in 18-dip (0.300", 7.62mm). It performs basic function of step-down, step-up/step-down. The switching frequency of the standard product is 1hz ~ 500khz. In addition, it is reach unaffected. Furthermore, it has atransistor driver output. Features 1 output phases. Topology includes buck, flyback. Possible control features include dead time control, enable, frequency control, reset, soft start. It is shipped in tube package . Clock Sync Info: no. It features a maximum duty cycle of 49%. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. Moreover, it corresponds to sg3526, a base product number of the product. It boasts positive output configuration. Additionally, the product is supplied with 2 outputs. The product is designated with the ear99 code number.
