Infineon Technologies IR3621MTRPBF

IR3621MTRPBF Infineon Technologies
Infineon Technologies

Product Information

Synchronous Rectifier:
Yes
HTSUS:
8542.39.0001
Number of Outputs:
2
Supplier Device Package:
32-MLPQ (5x5)
Operating Temperature:
-40°C ~ 125°C (TJ)
Voltage - Supply (Vcc/Vdd):
5.5V ~ 14.5V

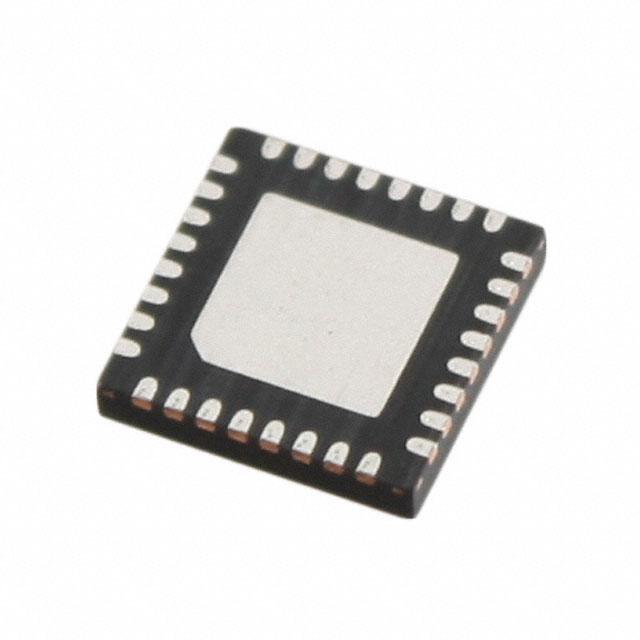

Package / Case:
32-VFQFN Exposed Pad
Function:
Step-Down
Frequency - Switching:
200kHz ~ 500kHz
REACH Status:
REACH Unaffected
Output Type:
Transistor Driver
Output Phases:
2
Topology:
Buck
Control Features:
Frequency Control, Power Good, Soft Start
Package:
Tape & Reel (TR)
Clock Sync:
Yes
Duty Cycle (Max):
86.5%
Moisture Sensitivity Level (MSL):
2 (1 Year)
Mounting Type:
Surface Mount
Series:
-
Serial Interfaces:
-
Output Configuration:
Positive
Base Product Number:
IR3621
ECCN:
EAR99
Checking for live stock

This is manufactured by Infineon Technologies. The manufacturer part number is IR3621MTRPBF. This also includes yes synchronous rectifier. It is assigned with possible HTSUS value of 8542.39.0001. Additionally, the product is supplied with 2 outputs. 32-mlpq (5x5) is the supplier device package value. The product has -40°c ~ 125°c (tj) operating temperature range. The supply voltage of a bespoke product includes 5.5v ~ 14.5v. Moreover, the product comes in 32-vfqfn exposed pad. It performs basic function of step-down. The switching frequency of the standard product is 200khz ~ 500khz. In addition, it is reach unaffected. Furthermore, it has atransistor driver output. Features 2 output phases. Topology includes buck. Possible control features include frequency control, power good, soft start. It is shipped in tape & reel (tr) package . Clock Sync Info: yes. It features a maximum duty cycle of 86.5%. Its typical moisture sensitivity level is 2 (1 year). The product is available in surface mount configuration. It boasts positive output configuration. Moreover, it corresponds to ir3621, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Dev EOL 22/Nov/2017(PCN Obsolescence/ EOL)
pdf icon
Additional Test Site 01/Aug/2014(PCN Assembly/Origin)
pdf icon
IR3621 (PbF)(Datasheets)
pdf icon
Part Number Guide(Other Related Documents)
pdf icon
Packing Material Update 16/Sep/2016(PCN Packaging)
pdf icon
Barcode Label Update 24/Feb/2017(PCN Packaging)
