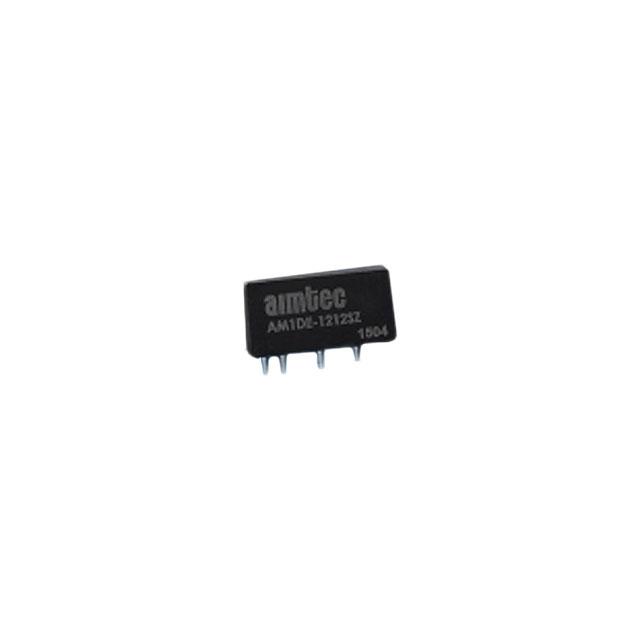

aimtec AM1DE-1212DZ

AM1DE-1212DZ aimtec
aimtec

Product Information

HTSUS:
8504.40.9580
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
-
Power (Watts):
1 W
Current - Output (Max):
42mA, 42mA
Approval Agency:
CE
Package / Case:
7-SIP Module, 5 Leads
Voltage - Input (Min):
10.8V
Type:
Isolated Module
Applications:
ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 1:
12V
Voltage - Output 2:
-12V
Voltage - Output 3:
-
Efficiency:
80%
Voltage - Input (Max):
13.2V
Control Features:
-
Package:
Tube
Size / Dimension:
0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Voltage - Isolation:
1.5 kV
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
-
Mounting Type:
Through Hole
Series:
AM1DE-Z (1W)
Operating Temperature:
-40°C ~ 95°C (With Derating)
Base Product Number:
AM1DE
Number of Outputs:
2
ECCN:
EAR99
Checking for live stock

This is manufactured by aimtec. The manufacturer part number is AM1DE-1212DZ. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs3 compliant. The product features power and watts of 1 w. The maximum product's output current is 42ma, 42ma. It is approved by ce. Moreover, the product comes in 7-sip module, 5 leads. It offers 10.8v of minimum input voltage. It comes in isolated module configuration. The product is widely employed in ite (commercial). It has a 12v output voltage. -12v of voltage output 2. It is a highly efficient product with an 80% of high efficiency. Its maximum input voltage is 13.2v. It is shipped in tube package . The product's diameters include 0.76" l x 0.24" w x 0.39" h (19.5mm x 6.0mm x 10.0mm). 1.5 kv of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. The product am1de-z (1w), is a highly preferred choice for users. The product has -40°c ~ 95°c (with derating) operating temperature range. Moreover, it corresponds to am1de, a base product number of the product. Additionally, the product is supplied with 2 outputs. The product is designated with the ear99 code number.

pdf icon
AM1DE-Z Series Datasheet(Datasheets)
