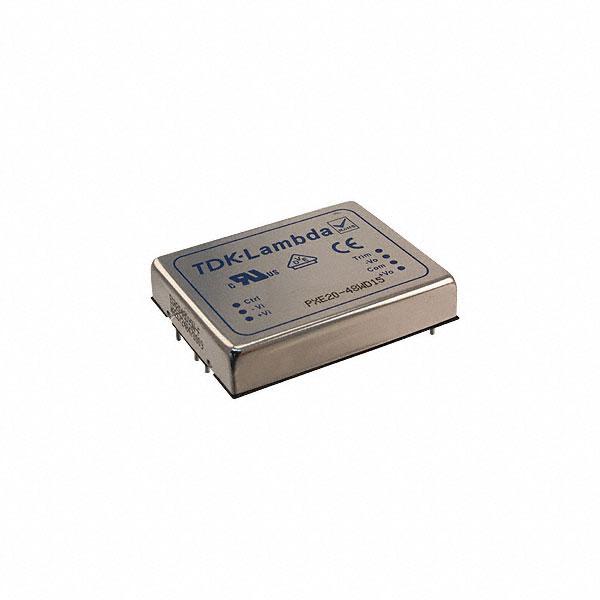

TDK-Lambda PXE 20W DC-DC Converter Through Hole, Voltage in 18, 75 V dc, Voltage out ±15V dc

PXE20-48WD15 TDK-Lambda PXE 20W DC-DC Converter Through Hole, Voltage in 18, 75 V dc, Voltage out ±15V dc
PXE20-48WD15
TDK-Lambda

Product Information

Number of Outputs:
2
Output Voltage Adjustment Range:
±10%
Load Regulation:
0.005
Isolation Voltage:
1.6kV
Output Current:
0.66A
Mounting Type:
Through Hole
Efficiency:
0.84
Maximum Temperature:
+100°C
Series:
PXE
Input Voltage Range:
18 → 75 V dc
Railway Approved:
No
Width:
40.6mm
Length:
50.8mm
Output Voltage:
±15V dc
Medical Approved:
No
Minimum Temperature:
-40°C
Input Voltage Nominal:
18 V dc
Power Rating:
20W
HTSUS:
8504.40.9580
RoHS Status:
RoHS Compliant
Voltage - Output 1:
15V
Power (Watts):
20 W
Current - Output (Max):
666mA, 666mA
Package / Case:
8-DIP Module, 7 Leads
Voltage - Input (Min):
18V
Type:
Isolated Module
title:
PXE20-48WD15
REACH Status:
REACH Unaffected
Voltage - Output 2:
-15V
Voltage - Output 3:
-
edacadModel:
PXE20-48WD15 Models
Efficiency:
84%
Applications:
ITE (Commercial)
edacadModelUrl:
/en/models/1631699
Voltage - Input (Max):
75V
Size / Dimension:
2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm)
standardLeadTime:
11 Weeks
Voltage - Isolation:
1.6 kV
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Remote On/Off
Mounting Type:
Through Hole
Series:
PXE (20W)
Operating Temperature:
-40°C ~ 100°C
Packaging:
Bulk
Base Product Number:
PXE20
Number of Outputs:
2
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is PXE 20W DC-DC Converter Through Hole Voltage in 18 75 V dc Voltage out ±15V dc manufactured by TDK-Lambda. The manufacturer part number is PXE20-48WD15. Additionally, the product is supplied with 2 outputs. It has ±10% of output voltage adjustment range. Load Regulation - 0.005. It has 1.6kv isolation voltage. It carries 0.66a output current. The product is available in through hole configuration. It is a highly efficient product with an 0.84 of high efficiency. The product has +100°c maximum temperature. The product pxe, is a highly preferred choice for users. It has 18 → 75 v dc of input voltage range. The product is railway approved no . Furthermore, the product is 40.6mm wide. Its accurate length is 50.8mm. Features a ±15v dc output voltage. Medical Approval - no. While its minimum temperature is -40°c. It has 18 v dc of nominal input voltage. Feature 20w of power rating. It is assigned with possible HTSUS value of 8504.40.9580. The product is rohs compliant. It has a 15v output voltage. The product features power and watts of 20 w. The maximum product's output current is 666ma, 666ma. Moreover, the product comes in 8-dip module, 7 leads. It offers 18v of minimum input voltage. It comes in isolated module configuration. In addition, it is reach unaffected. -15v of voltage output 2. It is a highly efficient product with an 84% of high efficiency. The product is widely employed in ite (commercial). Its maximum input voltage is 75v. The product's diameters include 2.00" l x 1.60" w x 0.40" h (50.8mm x 40.6mm x 8.6mm). It has a long 11 weeks standard lead time. 1.6 kv of isolation voltage. Its typical moisture sensitivity level is not applicable. The splendid features of the product include remote on/off. The product pxe (20w), is a highly preferred choice for users. The product has -40°c ~ 100°c operating temperature range. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to pxe20, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet - PXE-20-48WD-15(Technical Reference)
pdf icon
TDK Lambda RoHS PX Series(Environmental Information)
pdf icon
Marking chg 30/JUN/2022(PCN Design/Specification)
pdf icon
PXE Series Overview(Datasheets)
pdf icon
PXE20-xx(W)Sxx Datasheet(Datasheets)
